When building a web page, one of the most interactive elements you'll work with is the form. Forms are the backbone of user interaction, allowing you to gather input data from your visitors. HTML input types are at the heart of these forms, which dictate the kind of data you can collect—from text to passwords, dates to colors. Each input type serves a unique purpose, and understanding them is crucial for web developers who aim to create intuitive and user-friendly forms.
HTML input types are the building blocks that determine the functionality of an input field. They enable the browser to display the appropriate input control, such as a textbox, date picker, or range slider, and they also guide users in the kind of data they need to enter. For instance, when you use the input type password, it signals the browser to mask the user's input, providing privacy for sensitive information.
Moreover, input types play a significant role in validating the form data before the form is submitted. They help ensure that the data submitted matches the expected type and format, reducing errors and improving the overall user experience. For example, setting the type attribute to email prompts the browser to check for a valid email address format before allowing the form to be submitted.
<input>
ElementIn HTML, the <input>
element is a versatile form component that allows you to create a variety of input fields where users can enter data. It can be transformed into text boxes, checkboxes, radio buttons, and more, depending on the context of your form. This element is essential in gathering user input, which can range from simple text to complex selections.
The type attribute is the driving force behind the behavior of an <input>
element. It defines the input type and determines how the browser should render the input field and what kind of data it should accept. For example, an input type of email will tell the browser to expect an email address and may even trigger a specific keyboard on mobile devices to facilitate email entry.
<input>
ElementThe <input>
element is self-closing and includes attributes that specify its behavior and appearance. The general syntax includes the type attribute, the name attribute (which identifies the input field when the form data is submitted), and the value attribute (which holds the data entered by the user or a default value).

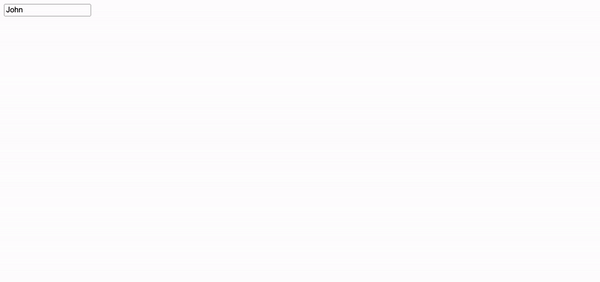

Here's a basic syntax example of an <input>
element:
1<input type="text" name="firstName" value="John" />
In this example, the input field is of type text, which allows users to enter plain text. The name attribute is set to "firstName," which will be the key for this piece of data when the form is submitted. The value attribute is pre-populated with "John" as the default value, which the user can change.

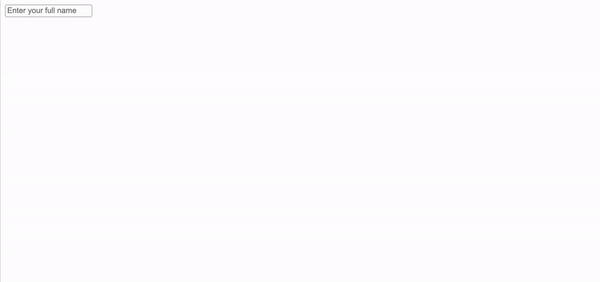

The text input type is the most basic form of text-based input, allowing users to enter any combination of characters. It's commonly used for names, addresses, or any other type of general text input.
Example of a text input field:
1<input type="text" name="fullName" placeholder="Enter your full name" />
The password input type is designed for password fields where the characters entered by the user should be obscured. This provides a basic level of privacy and security for sensitive information like passwords.
Example of a password input field:
1<input type="password" name="userPassword" placeholder="Create a password" />
The email input type facilitates the entry of email addresses by providing built-in validation to ensure the entered text is in the format of an email address.
Example of an email input field:
1<input type="email" name="userEmail" placeholder="Enter your email" />
The tel input type is used for input fields intended to receive telephone numbers. While it doesn't enforce a specific format, it can prompt the display of a numeric keypad on mobile devices.
Example of a telephone number input field:
1<input type="tel" name="userPhone" placeholder="Enter your phone number" />
The search input type is optimized for search fields, potentially providing features like a clear button to reset the field or special styling on some browsers.
Example of a search input field:
1<input type="search" name="searchQuery" placeholder="Search here" />
The url input type ensures that the entered text conforms to the format of a URL, helping to prevent user errors when entering web addresses.
Example of a URL input field:
1<input type="url" name="website" placeholder="Enter a URL" />
Text-based input types can be further customized with various attributes to enhance their functionality and user experience:
placeholder: Provides a hint to the user about what to enter in the input field. It's displayed in the field before the user enters a value.
readonly: Makes the input field uneditable. The user can still focus and copy the text, but cannot change it.
disabled: Disables the input field, preventing the user from interacting with it. Disabled fields are not submitted with the form.
maxlength: Specifies the maximum number of characters that the user can enter.
size: Defines the visible width of the input field in characters.
Example of a text input field with additional attributes:
1<input type="text" name="bio" placeholder="Tell us about yourself" readonly maxlength="200" size="50" />

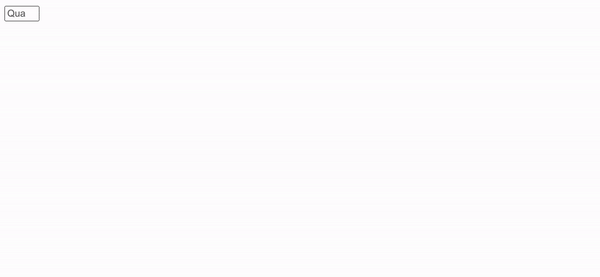

The number input type is specifically designed for entering numerical values. It provides a convenient way for users to input a number, and it often comes with small up and down arrows to increment or decrement the value. This input type is ideal for quantities, prices, and other numerical data.
Example of a number input field:
1<input type="number" name="quantity" min="1" max="100" step="1" placeholder="Quantity" />
The range input type displays as a slider control, allowing users to select a value from within a predefined range. It's a great way to offer a visual selection of numbers, such as volume controls or adjusting settings within a certain limit.
Example of a range slider input field:
1<input type="range" name="volume" min="0" max="100" step="1" />
Numeric input types can be further refined using attributes that define the permissible range and increment of the values:
min: Sets the minimum value that the user can select or enter.
max: Sets the maximum value for the input.
step: Defines the interval between values that the user can select or enter. For example, a step value of "1" allows only whole numbers.
These attributes not only help in constraining the input value to a specific range but also aid in the validation process by ensuring the user enters a value that adheres to the defined parameters.
Example of a number input field with min, max, and step attributes:
1<input type="number" name="age" min="18" max="99" step="1" placeholder="Enter your age" />
By leveraging these attributes, you can create numeric input fields that are more user-friendly and precise, ensuring that the data collected is within the desired range and format.
The date input type allows users to select a date from a calendar-style date picker. It simplifies the process of entering dates and helps to prevent the entry of invalid date formats.

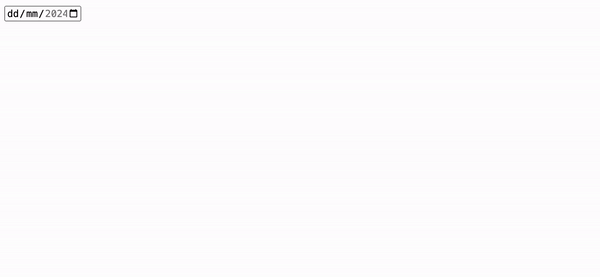

Example of a date input field:
1<input type="date" name="appointmentDate" min="2024-01-01" max="2024-12-31" />

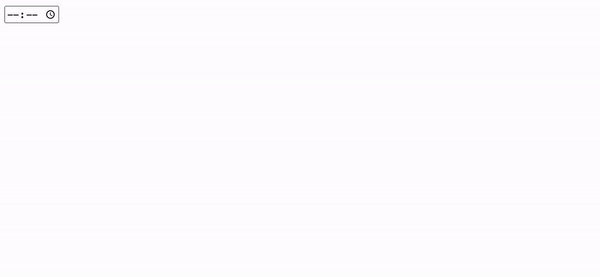

The time input type provides users with a control for entering a time value, with options to specify the hour, minute, and sometimes second. It's useful for setting times for events, alarms, or any other time-based input.
Example of a time input field:
1<input type="time" name="meetingTime" min="09:00" max="18:00" step="900" />
The datetime-local input type combines date and time selection into a single control, allowing users to specify both on the same input field. This is particularly handy for scheduling events that require a specific date and time.
Example of a datetime-local input field:
1<input type="datetime-local" name="eventDateTime" min="2024-01-01T08:00" max="2024-12-31T18:00" />
The month input type lets users select a month and year, omitting the day. It's a good choice for inputs that require only a general time frame, such as credit card expiration dates or monthly reports.
Example of a month input field:
1<input type="month" name="subscriptionStart" min="2024-01" max="2025-12" />
The week input type enables users to select a specific week of a year. It's useful for applications that need to capture data on a weekly basis, such as timesheets or weekly reservations.
Example of a week input field:
1<input type="week" name="bookingWeek" min="2024-W01" max="2024-W52" />
The file input type is used to create an input field that allows users to select one or more files from their device storage to be uploaded to a server or manipulated by JavaScript. This input type is essential for tasks such as uploading documents, photos, or any other file types.
Example of a file input field:
1<input type="file" name="resume" />
The file input type can be customized with several attributes that enhance its functionality and user experience:

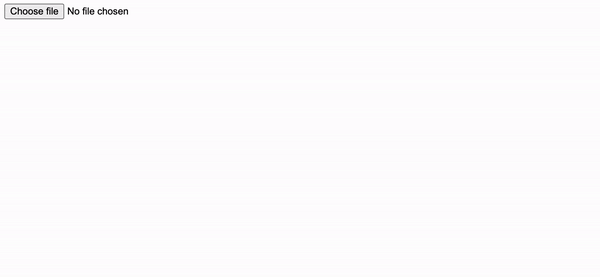

Example of a file input field with the accept attribute:
1<input type="file" name="userManual" accept=".pdf" />
Example of a file input field with the multiple attribute:
1<input type="file" name="gallery" accept="image/*" multiple />

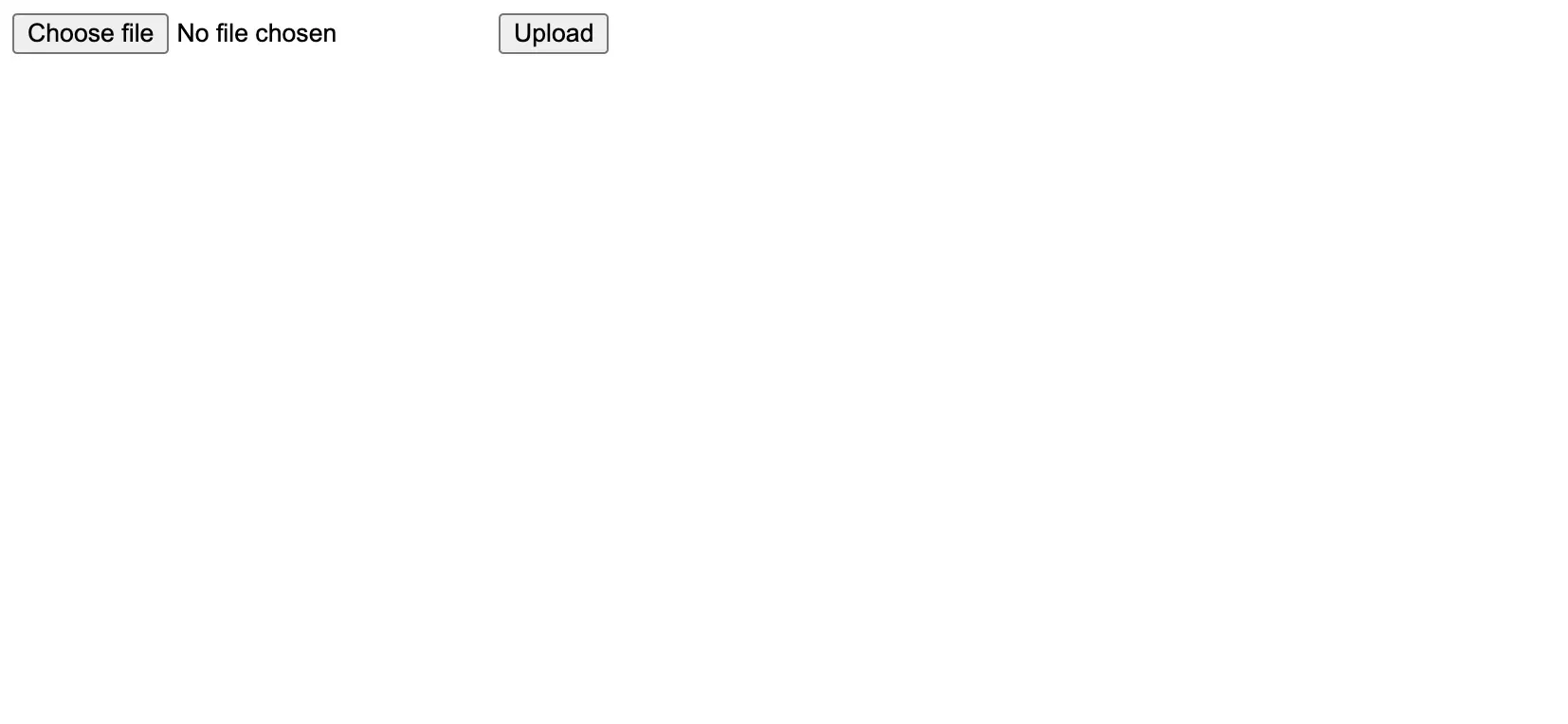

Example of a form with a file input field ready for file uploads:
1<form action="/upload" method="post" enctype="multipart/form-data"> 2 <input type="file" name="profilePicture" accept="image/*" /> 3 <input type="submit" value="Upload" /> 4</form>
By using the file input type with its associated attributes, you can provide users with a straightforward way to upload files, while also ensuring that the files are in the correct format and handled efficiently during the upload process.
The checkbox input type is designed for scenarios where users can make multiple selections from a set of options. Each checkbox is independent, and checking one box doesn't affect the others, making it ideal for options like selecting interests or features in a form.

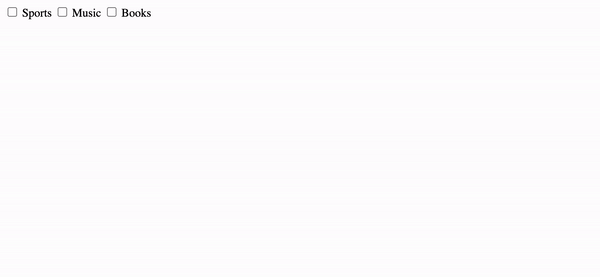

Example of checkbox input fields:
1<form> 2 <label><input type="checkbox" name="interest" value="sports"> Sports</label> 3 <label><input type="checkbox" name="interest" value="music"> Music</label> 4 <label><input type="checkbox" name="interest" value="books"> Books</label> 5</form>
The radio input type allows users to select only one option from a group of choices. Radio buttons are mutually exclusive; selecting one option will deselect any previously selected option within the same group.

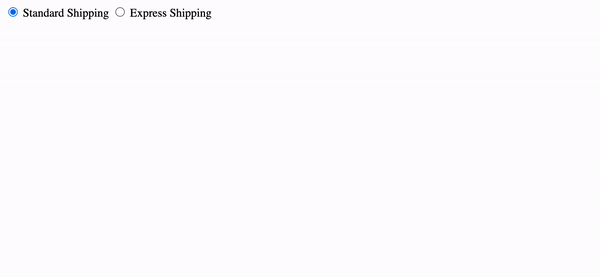

Example of radio button input fields:
1<form> 2 <label><input type="radio" name="shipping" value="standard" checked> Standard Shipping</label> 3 <label><input type="radio" name="shipping" value="express"> Express Shipping</label> 4</form>
When using checkbox and radio input types, it's important to follow best practices for grouping and labeling to ensure accessibility and ease of use:
Group related options together visually and programmatically. For radio buttons, this means using the same name attribute for all options in the group.
Use the <label>
element to provide a clickable description for each input, improving usability and accessibility. The for attribute of the label should match the id of the corresponding input.
Consider using the <fieldset>
and <legend>
elements to group related inputs and create a descriptive caption for the group.

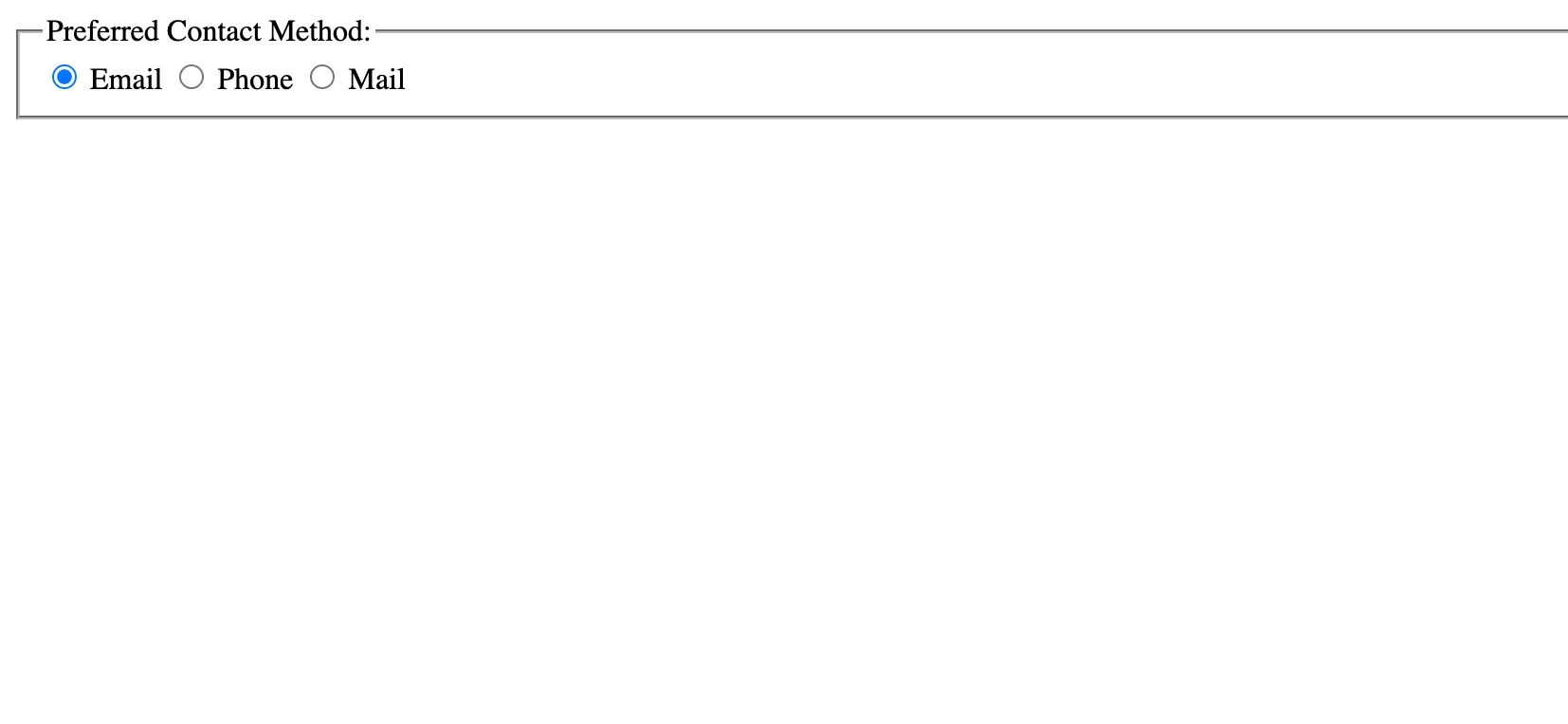

Example of properly grouped and labeled radio buttons:
1<form> 2 <fieldset> 3 <legend>Preferred Contact Method:</legend> 4 <label for="contactEmail"><input type="radio" id="contactEmail" name="contact" value="email" checked> Email</label> 5 <label for="contactPhone"><input type="radio" id="contactPhone" name="contact" value="phone"> Phone</label> 6 <label for="contactMail"><input type="radio" id="contactMail" name="contact" value="mail"> Mail</label> 7 </fieldset> 8</form>
By adhering to these best practices, you can create forms with checkbox and radio input types that are not only functional but also intuitive and accessible to all users.
The color input type provides a user-friendly way to select a color, typically opening a color picker when the input field is clicked. It's useful for applications that require users to choose a specific color, such as for a design tool or personalizing the theme of a profile.
Example of a color input field:
1<input type="color" name="favoriteColor" value="#ff0000" />
The hidden input type is used to store data that should not be visible or editable by the user but needs to be submitted with the form. This can include session identifiers, tokens, or any other data that should be transmitted with the form but kept out of user view.
Example of a hidden input field:
1<input type="hidden" name="userId" value="12345" />
The image input type creates a graphical submit button. You specify an image to be displayed, and when clicked, the form is submitted. The src attribute is used to define the path to the image that will be displayed on the button.
Example of an image input field:
1<input type="image" src="image-path-here.png" alt="Logo" />
These input types create buttons on the form with different behaviors:
button: A clickable button that can be used to trigger a JavaScript function but does not inherently submit or reset the form.
submit: This button submits the form to the server or triggers a JavaScript function to process the form data.
reset: A button that resets all the form fields to their default values, clearing any user input.

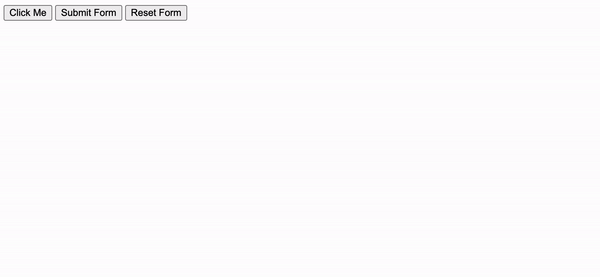

Example of button, submit, and reset input fields:
1<!-- Example of button, submit, and reset input fields --> 2<input type="button" value="Click Me" onclick="alert('Button clicked!')" /> 3<input type="submit" value="Submit Form" /> 4<input type="reset" value="Reset Form" />
The name attribute is essential for form submission as it defines the key for the form data sent to the server or processed by JavaScript. Each input must have a unique name attribute to ensure the data collected is accurately labeled and retrievable.
Example of an input field with the name attribute:
1<input type="text" name="username" placeholder="Username" />

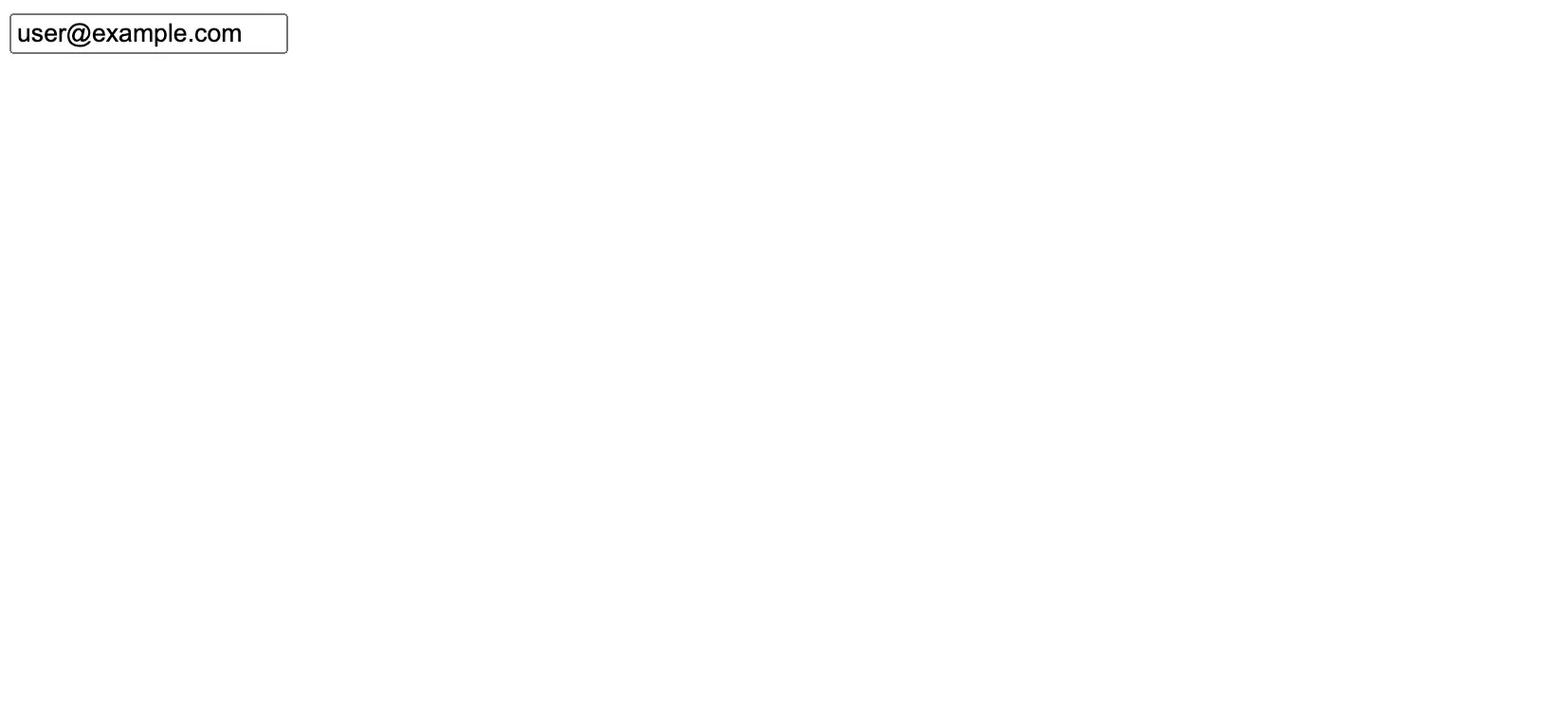

The value attribute specifies the initial value for an input field. It's the data that will be sent along with the form if the user does not change it. This attribute is also used as the submitted value for options in checkbox and radio input types.
Example of an input field with the value attribute:
1<input type="email" name="email" value="user@example.com" />
The placeholder attribute is used to display a hint or instruction within the input field that guides the user on what to enter. The placeholder text disappears once the user starts typing.
Example of an input field with the placeholder attribute:
1<input type="search" name="search" placeholder="Search the site" />
The required boolean attribute indicates that an input field must be filled out before the form can be submitted. It's a simple way to enforce that certain information is provided by the user.
Example of a required input field:
1<input type="text" name="firstName" placeholder="First Name" required />
The pattern parameter is used to specify a regular expression against which the input value is tested. This provides a method for validating the format of the input data.
Example of an input field with the pattern attribute:
1<input type="text" name="zipCode" placeholder="Zip Code" pattern="\d{5}-\d{4}|\d{5}" title="Enter a 5-digit zip code or a 9-digit zip+4 code." /> 2
The autocomplete attribute specifies whether an input field should have autocomplete enabled or disabled. When enabled, the browser can predict the value based on user's past entries.
Example of an input field with the autocomplete attribute:
1<input type="text" name="address" autocomplete="off" placeholder="Address" />
The autofocus boolean attribute is used to specify that an input field should automatically be in focus when the page loads, allowing the user to start typing immediately without having to click on the field first.
Example of an input field with the autofocus attribute:
1<input type="text" name="username" placeholder="Username" autofocus />
The form attribute allows you to associate an input element with a form elsewhere in the document, which is useful when the input is not physically contained within the form element itself.
Example of an input field with the form attribute:
1<input type="submit" form="userForm" value="Submit" /> 2<form id="userForm" action="/submit-form" method="post"> 3 <!-- Form elements go here --> 4</form>
By understanding and using these common attributes, you can create input elements that are not only functional but also provide a better user experience, ensuring that the form data is complete, accurate, and easy to interact with.

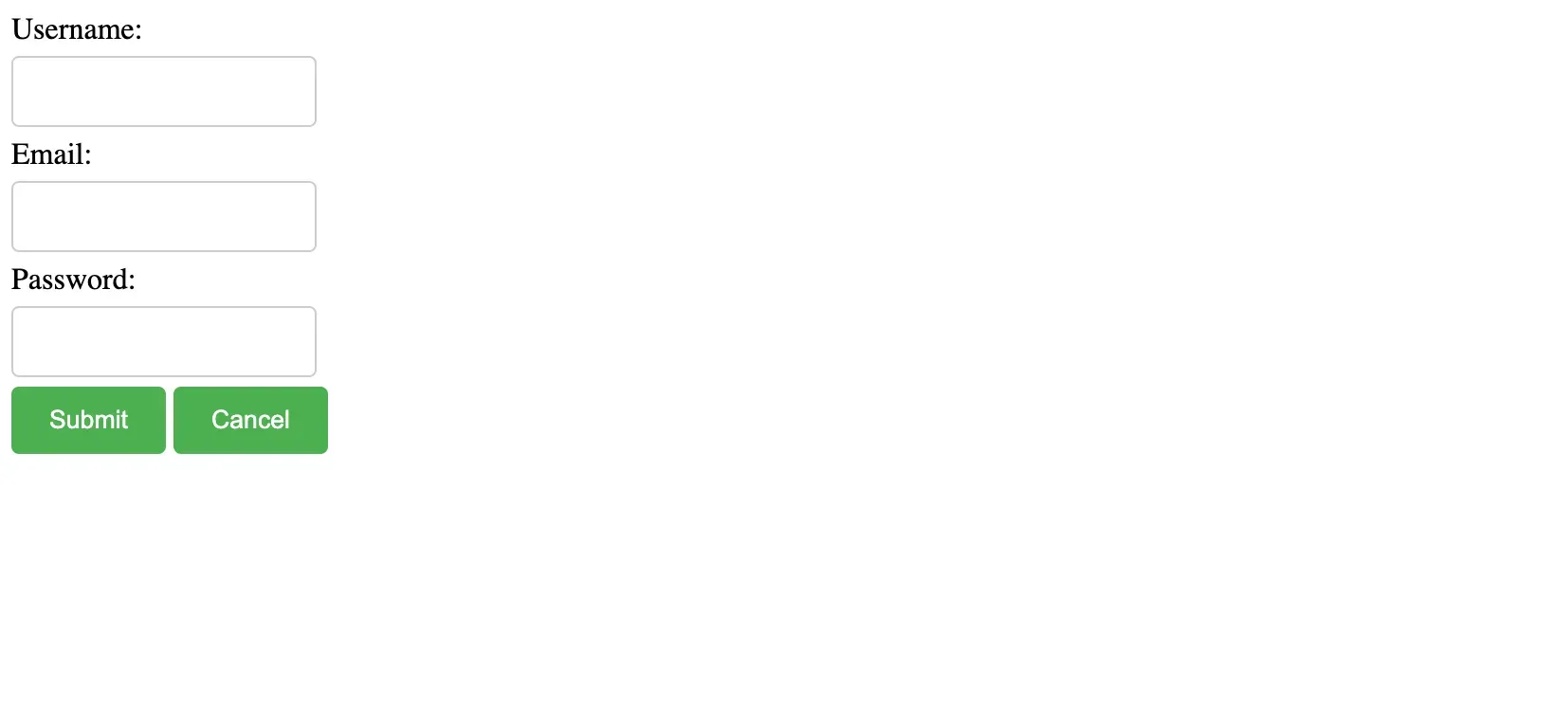

Styling HTML input elements with CSS enhances the visual appeal and user experience of your forms. You can modify the appearance of input fields, including their size, color, borders, and shadows, to match the design of your page.
Example of CSS styling for input elements:
1/* Basic CSS styling for input elements */ 2input[type="text"], 3input[type="email"], 4input[type="password"] { 5 padding: 10px; 6 margin: 5px 0; 7 border: 1px solid #ccc; 8 border-radius: 4px; 9} 10 11input[type="submit"], 12input[type="button"] { 13 background-color: #4CAF50; 14 color: white; 15 padding: 10px 20px; 16 border: none; 17 border-radius: 4px; 18 cursor: pointer; 19} 20 21input[type="submit"]:hover, 22input[type="button"]:hover { 23 background-color: #45a049; 24}
Responsive design ensures that your input elements look good and function well on all devices, from desktops to smartphones. Use relative units like percentages or viewport units, and consider using media queries to adjust styles based on the device's screen size.
Example of responsive input fields using CSS:
1/* Responsive input fields using CSS */ 2input[type="text"], 3input[type="email"], 4input[type="password"] { 5 width: 100%; 6 max-width: 400px; /* Ensures the input isn't too wide on large screens */ 7 box-sizing: border-box; /* Includes padding and border in the element's total width and height */ 8} 9 10@media (max-width: 600px) { 11 input[type="submit"], 12 input[type="button"] { 13 width: 100%; 14 padding: 15px; 15 } 16}
Different browsers may render input elements differently, so it's important to ensure cross-browser consistency. Use CSS normalization or reset stylesheets to reduce browser inconsistencies, and test your forms in multiple browsers to ensure they look and behave as expected.
Example of CSS to normalize input element styles:
1/* CSS to normalize input element styles */ 2input, 3button, 4select, 5textarea { 6 font-family: inherit; /* Ensures font consistency across input types and browsers */ 7 font-size: 100%; /* Prevents browsers from setting a default font size */ 8 line-height: 1.15; /* Corrects line height in all browsers */ 9 margin: 0; /* Removes the default margin in all browsers */ 10} 11 12/* Style adjustments for specific input types */ 13input[type="checkbox"], 14input[type="radio"] { 15 box-sizing: border-box; /* Fixes the box model for these input types */ 16 padding: 0; /* Removes the default padding */ 17}
Throughout this comprehensive guide, we've explored the vast landscape of HTML input types, each serving a unique purpose in the world of web forms. From the simplicity of text-based inputs to the complexity of file uploads, the versatility of HTML input elements is key to creating interactive and user-friendly web pages.
We've delved into numeric inputs like the number and range sliders, date and time selectors that enhance user experience with intuitive interfaces, and the ever-important checkboxes and radio buttons for multiple and single-choice questions. We've also touched on less common but equally valuable input types such as color pickers and hidden inputs, and we've seen how various button types can trigger different form actions.
Moreover, we've highlighted the significance of attributes that refine the behavior of input fields, ensuring that the data collected is accurate and the form is easy to navigate. Styling these elements with CSS not only makes them visually appealing but also responsive and consistent across different browsers and devices.
As you implement these HTML input types in your projects, remember the importance of accessibility, validation, and user experience. So go ahead, experiment with different input types, and watch as your web forms transform into engaging, interactive components of your web applications.
