Input Radio HTML: How to Design and Style Form Options

In the digital world, HTML forms are the backbone of user interaction on web pages. They allow users to submit information, ranging from simple search queries to complex registration details.

At the heart of these forms is the input element, a versatile tag that can be configured to accept a variety of data types, including text, passwords, and even file uploads. Each input type serves a unique purpose, and understanding each one is crucial for creating intuitive and efficient web forms.

Basics of Radio Buttons

Radio buttons are a fundamental component in HTML forms when you need to present users with a set of mutually exclusive options. Each radio button represents a choice, and the design of radio buttons ensures that when one is selected, any previously selected button in the same group is deselected. This functionality is crucial for forms where a single selection is required, such as choosing a payment method or selecting a gender.

Single Selection from a Group

The magic of radio buttons allowing only one radio button to be selected at a time lies in their grouping. When you create radio buttons with the same name attribute, you are essentially linking them together as a single functional unit—a radio group. Within this radio group, the browsers' built-in behavior enforces the rule that selecting a new radio button will automatically uncheck the previously selected radio button, thus maintaining the rule of single selection.

Syntax of the radio Type Input

The input type radio is defined in HTML using the <input> tag with the type attribute set to “radio”. To group radio buttons together, you assign them the same “name” attribute. Each radio button in the group should have a value attribute containing the unique value that will be submitted if that radio button is selected.

Here's the syntax for a basic radio button:

Copy
1
2
<input type="radio" name="groupName" value="uniqueValue" id="uniqueId">
<label for="uniqueId">Option Label</label>

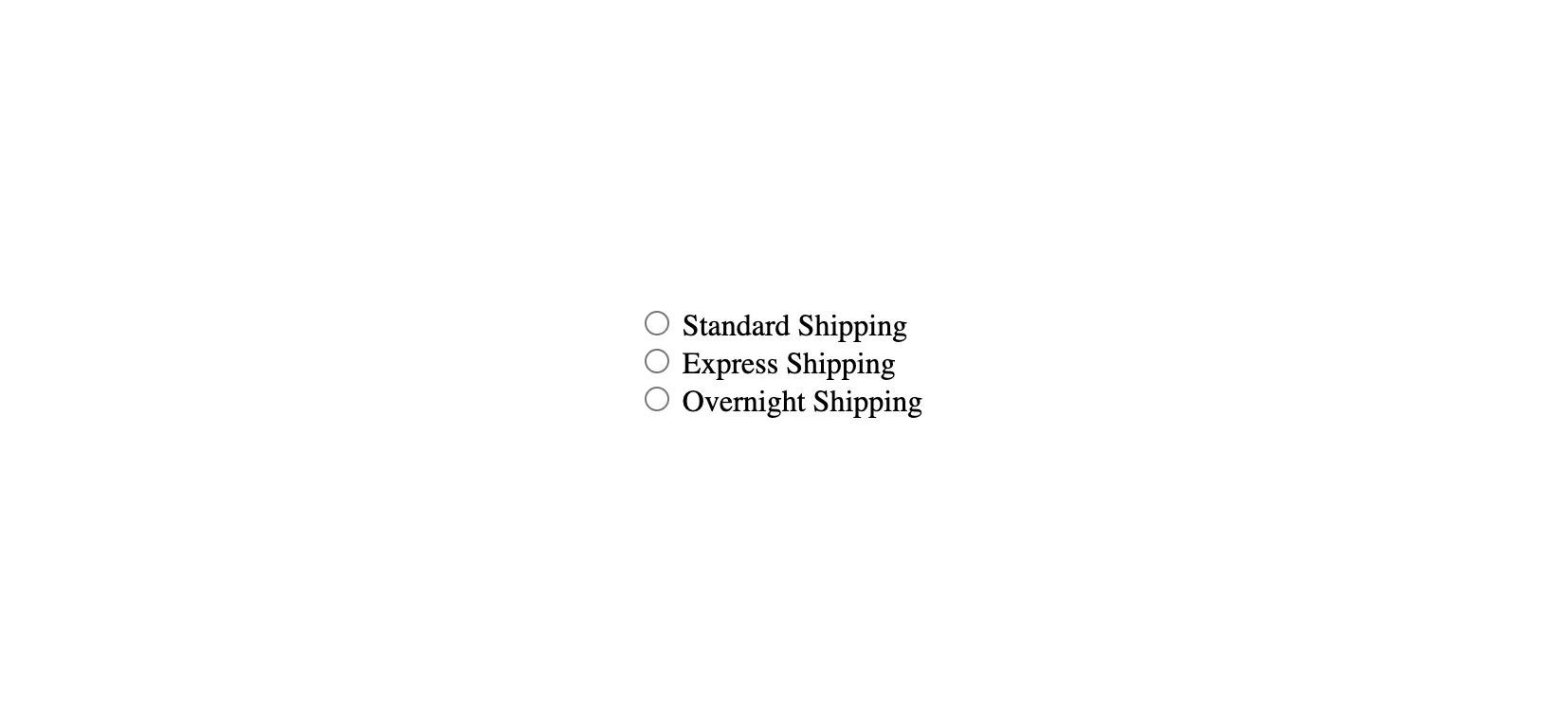

Let's create a simple form with three radio buttons, each representing a different shipping option. Note that all the radio buttons share the same “name" attribute, which groups them together, and each has a unique “id" and “value".

Copy
1
2
3
4
5
6
7
8
9
10
<form>
  <input type="radio" id="standard" name="shipping" value="standard">
  <label for="standard">Standard Shipping</label><br>

  <input type="radio" id="express" name="shipping" value="express">
  <label for="express">Express Shipping</label><br>

  <input type="radio" id="overnight" name="shipping" value="overnight">
  <label for="overnight">Overnight Shipping</label>
</form>

In the above example, when a user clicks on a label or its corresponding radio button, the browser will check that radio button and simultaneously uncheck any other radio button with the same name. This ensures that only one radio button from the same group can be selected at a time, providing an unambiguous selection mechanism for the form.

Grouping Radio Buttons

Grouping radio buttons is a critical aspect of form design that ensures a user can make only one selection within a set of options. This concept is particularly important in scenarios where a clear and exclusive choice is necessary, such as selecting a payment method or choosing an answer in a multiple-choice questionnaire. By grouping radio buttons, you provide a seamless and error-free experience for users, as it prevents them from selecting conflicting options.

The “name" attribute is the key to grouping radio buttons in HTML. When you assign the same name to multiple radio buttons, you are telling the browser that these buttons are part of the same group. As a result, the browser ensures that only one radio button within this group can be selected at any given time. When a user selects a new radio button within the group, the browser automatically deselects the previously selected one.

How the Browser Differentiates Between Different Groups

Browsers differentiate between radio groups based on the “name" attribute. Each group should have a unique name. This allows you to have as many radio groups as necessary on a single page without interference between them. Users can select one radio button per group, and the browser manages the state of each group independently.

Let's illustrate grouping with an example where a user needs to select their preferred contact method from one group and their preferred newsletter frequency from another. Each group will have its own unique name attribute.

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
<form>
  <!-- Contact Method Group -->
  <p>Select your preferred contact method:</p>
  <input type="radio" id="contactEmail" name="contactMethod" value="email">
  <label for="contactEmail">Email</label><br>

  <input type="radio" id="contactPhone" name="contactMethod" value="phone">
  <label for="contactPhone">Phone</label><br>

  <input type="radio" id="contactMail" name="contactMethod" value="mail">
  <label for="contactMail">Mail</label><br>

  <!-- Newsletter Frequency Group -->
  <p>Select your preferred newsletter frequency:</p>
  <input type="radio" id="frequencyWeekly" name="newsletterFrequency" value="weekly">
  <label for="frequencyWeekly">Weekly</label><br>

  <input type="radio" id="frequencyMonthly" name="newsletterFrequency" value="monthly">
  <label for="frequencyMonthly">Monthly</label><br>

  <input type="radio" id="frequencyQuarterly" name="newsletterFrequency" value="quarterly">
  <label for="frequencyQuarterly">Quarterly</label>
</form>

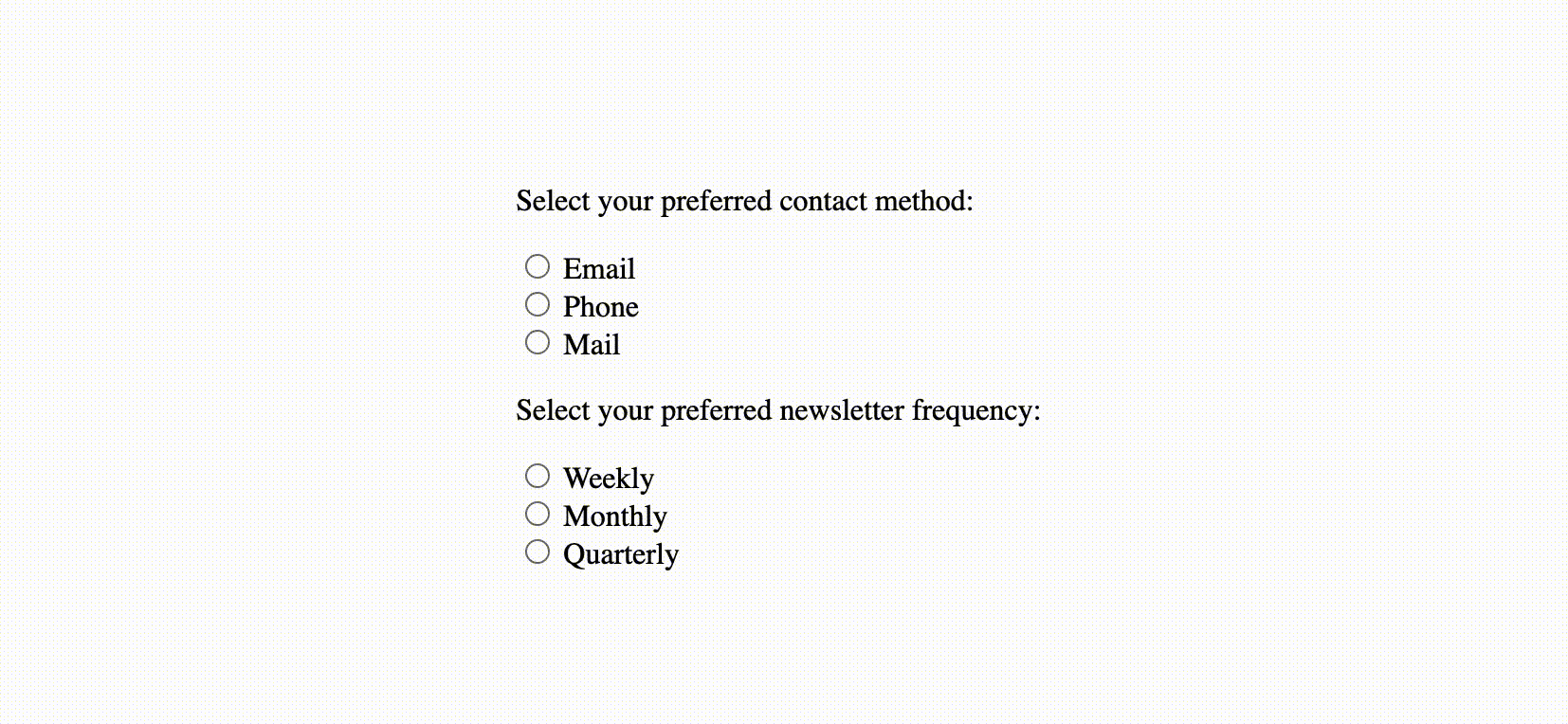

In the above example, we have two distinct groups of radio buttons: one for the contact method and another for the newsletter frequency. Each group has a different name attribute, which allows users to make one selection in each group without affecting the other. This is how you can have multiple independent radio groups coexisting on the same form.

Default Checked Radio Button

In HTML, the “checked" attribute is used to preselect a radio button when the page loads. This attribute can be added to any <input type="radio"> tag to make it the default choice. This is particularly useful for guiding users towards a particular selection or to ensure that a form has a valid option selected by default, which can help prevent user error and streamline the form submission process.

Why You Might Want to Have a Default Selection

Having a default selection can improve the user experience in several ways. It can:

• Suggest the most popular or recommended option to the user.

• Save time for the user by preselecting a commonly chosen option.

• Ensure that there is always a valid selection, which is especially important if a choice is required for form submission.

• Reduce the number of decisions a user needs to make, leading to a quicker and more efficient interaction with the form.

Let's create an example form where users are asked to choose a subscription plan. We'll set the "Standard Plan" as the default option using the “checked" attribute, indicating that it's the recommended choice or perhaps the most commonly selected by users.

Copy
1
2
3
4
5
6
7
8
9
10
11
<form>
  <p>Select your subscription plan:</p>
  <input type="radio" id="standardPlan" name="subscriptionPlan" value="standard" checked>
  <label for="standardPlan">Standard Plan</label><br>

  <input type="radio" id="premiumPlan" name="subscriptionPlan" value="premium">
  <label for="premiumPlan">Premium Plan</label><br>

  <input type="radio" id="enterprisePlan" name="subscriptionPlan" value="enterprise">
  <label for="enterprisePlan">Enterprise Plan</label>
</form>

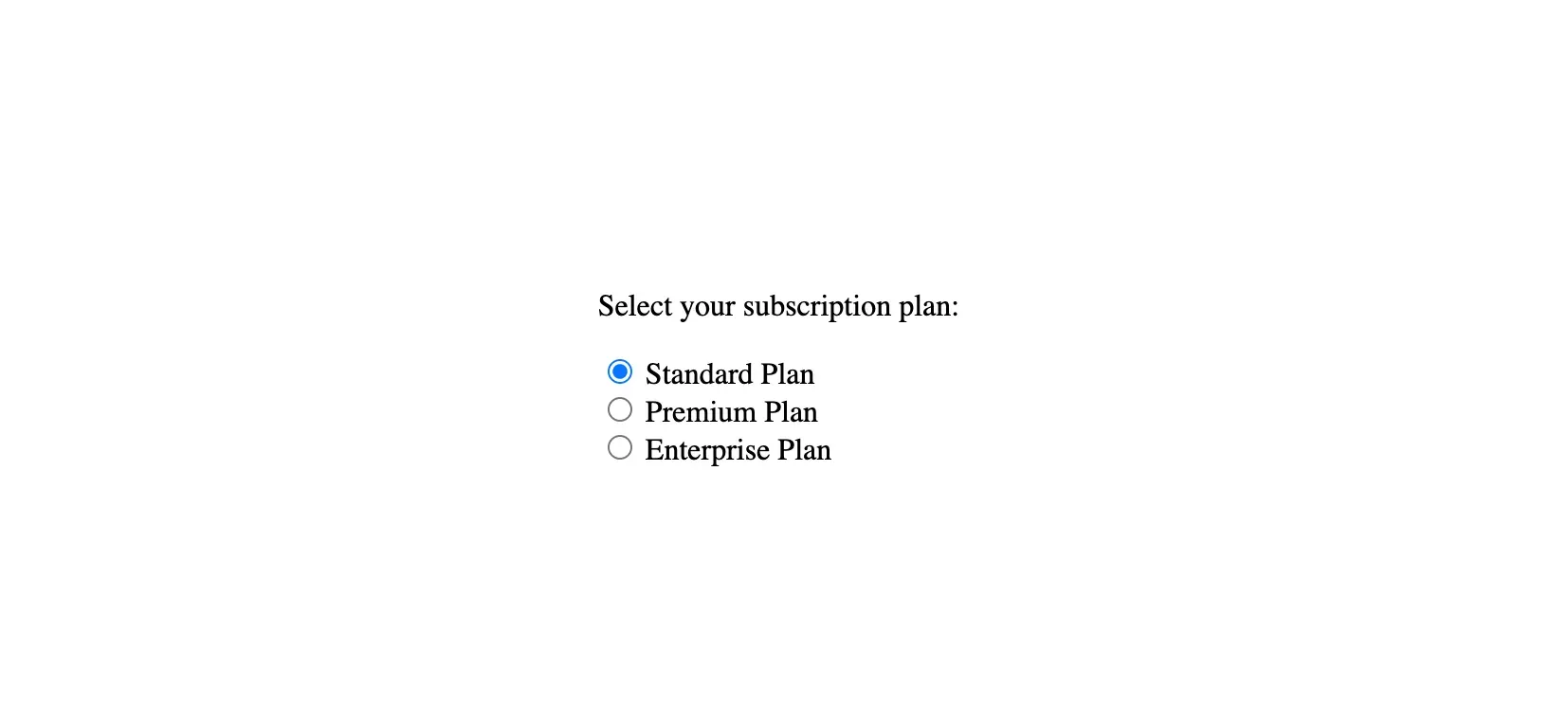

In this example, when the page loads, the "Standard Plan" radio button will already be selected thanks to the “checked" attribute. Users can still change their selection to a different plan if they wish, but by setting a default, you've made the process easier and potentially guided them towards a preferred option.

Styling Radio Buttons

Styling radio buttons can be a bit tricky due to the default browser styles that come with these form elements. These styles vary across different browsers, and the standard radio button appearance may not always align with the design aesthetic of your website. Additionally, the core parts of the radio button, such as the circular indicator, are not directly styleable using CSS. This leads developers to implement creative solutions to fully customize the look of radio buttons.

CSS Techniques for Customizing the Appearance

To overcome the styling limitations of native radio buttons, developers often hide the default radio button and use the associated “label" element to create a custom appearance. This can be achieved by using CSS to style the “label" with properties like background, border, and border-radius. Pseudo-elements like ::before and ::after can also be used within the label to create custom indicators for the selected and unselected states.

Here's a CSS snippet that demonstrates how to customize radio buttons:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
/* Hide the default radio button */
input[type="radio"] {
  display: none;
}

/* Style for the label that will represent the radio button */
.radio-label {
  display: inline-block;
  margin-bottom: 5px;
  margin-right: 10px;
  padding: 5px 20px;
  border: 2px solid #ddd;
  border-radius: 15px;
  cursor: pointer;
}

/* Style when the radio button is checked */
input[type="radio"]:checked + .radio-label {
  border-color: #009688;
  background-color: #009688;
  color: white;
}

Using Labels for Better User Experience and Style Control

Using “label" elements not only allows for better styling but also enhances the user experience. Clickable labels increase the target area, making it easier for users to select the option they want, which is especially beneficial on touch devices.

Additionally, labels provide visual feedback when styled to change appearance upon selection, giving users clear confirmation of their choice.

Let's apply the above CSS to style a group of radio buttons for a survey form, where users are asked to rate their satisfaction level.

Copy
1
2
3
4
5
6
7
8
9
10
11
12
<form>
  <p>How satisfied are you with our service?</p>

  <input type="radio" id="satisfied" name="satisfaction" value="Satisfied">
  <label for="satisfied" class="radio-label">Satisfied</label>

  <input type="radio" id="neutral" name="satisfaction" value="Neutral">
  <label for="neutral" class="radio-label">Neutral</label>

  <input type="radio" id="dissatisfied" name="satisfaction" value="Dissatisfied">
  <label for="dissatisfied" class="radio-label">Dissatisfied</label>
</form>

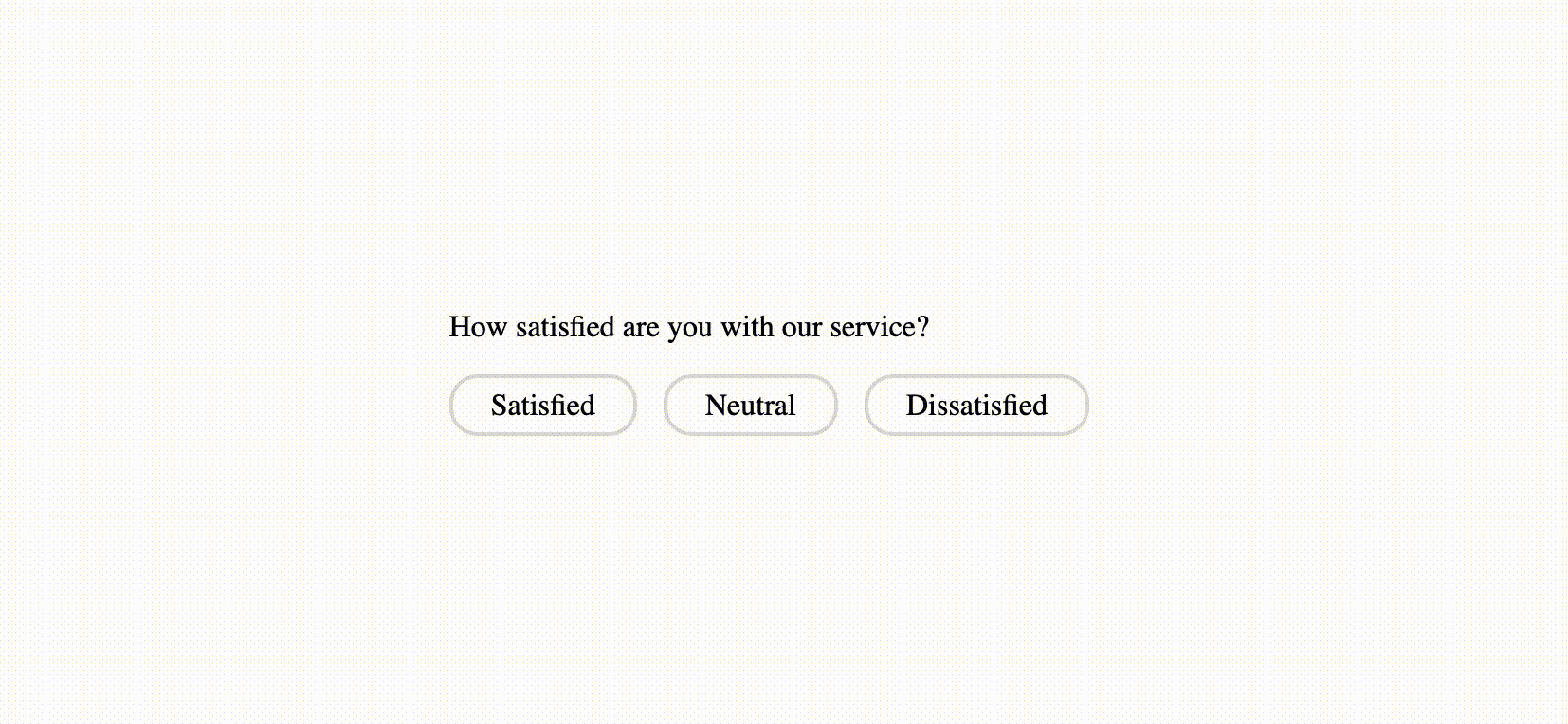

In this example, the actual radio buttons are hidden, and the labels are styled to look like clickable buttons. When a user selects an option, the associated label changes its appearance to reflect the selection, providing immediate visual feedback.

Conclusion

Radio buttons are an essential element in HTML forms, providing users with a clear and simple way to make a single choice from a set of options. We've explored the basics of radio buttons, how to group them, set a default checked option, and the intricacies of styling them for a more engaging user interface.

As you incorporate radio buttons into your web projects, keep in mind the importance of usability and accessibility. Ensure that your forms are easy to navigate, your radio buttons are clearly labeled, and your custom styles do not hinder the functionality or accessibility of the input elements.

With the knowledge and examples provided in this blog, you're now equipped to create, style, and manage radio buttons in your HTML forms.
