Flutter Expandable List: Your Essential Guide to Dynamic UI Components

Flutter Expandable List, is an essential UI component that allows users to efficiently navigate large amounts of data. In app design, it's crucial to present information in an organized, accessible manner, and Flutter's widgets make this easier than ever. If you're building a Flutter app with sizable datasets, mastering expandable lists will ensure your user interface is both practical and polished.

What is a Flutter Expandable List?

A Flutter Expandable List, simply put, is a list whose items can expand or collapse to show more or less information. This UI pattern is ideal for apps that need to present lists with sub-lists or detailed information without overwhelming the user immediately. A 'detailed tile' can be used to display detailed information within a list view, especially in cases where there is limited space to expand and collapse the list. Think of settings menus, FAQs, or nested categories; all are perfect use cases for an expandable list.

Expandable lists in Flutter are typically implemented using the Expansion Tile Widget . They are not only a visual tool but also a way to optimize performance by limiting the data loaded on-screen at any given time. Users see what they need when they need it, all with a tap.

Core Concepts Behind Flutter Expandable Menu

Before diving into code and implementation, let's establish the core concepts that make up a Flutter expandable menu. Flutter applications are interactive, so responding to user input is a basic requirement. Whenever a user interacts with an expandable menu, the state of the menu changes—it either expands or collapses. Managing this state change effectively is critical to ensure a smooth user experience.

Dive into the Expansion Tile Widget

The Expansion Tile Widget is the heart of creating an expandable list in Flutter. The expansion arrow icon can be customized using the 'controlAffinity' parameter to control its position within the ExpansionTile widget. The beauty of the Expansion Tile is its simplicity and customizability. With only a few properties set, you can have a working expandable list in your app.

Creating a Basic Expandable List Flutter

Let’s build a basic expandable list to get a firsthand view of how it functions. Start by opening your Flutter project and navigate to the widget where you want to implement the expandable list. Here, we will create a simple list of items using ExpansionTile:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
import 'package:flutter/material.dart';

void main() {
  runApp(MyApp());
}

class MyApp extends StatefulWidget {
  @override
  _MyAppState createState() => _MyAppState();
}

class _MyAppState extends State<MyApp> {
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: ListView.builder(
          itemBuilder: (BuildContext context, int index) {
            return ExpansionTile(
              title: Text('Item $index'),
              children: <Widget>[
                ListTile(title: Text('Sub-item 1')),
                ListTile(title: Text('Sub-item 2')),
              ],
            );
          },
          itemCount: 5,
        ),
      ),
    );
  }
}

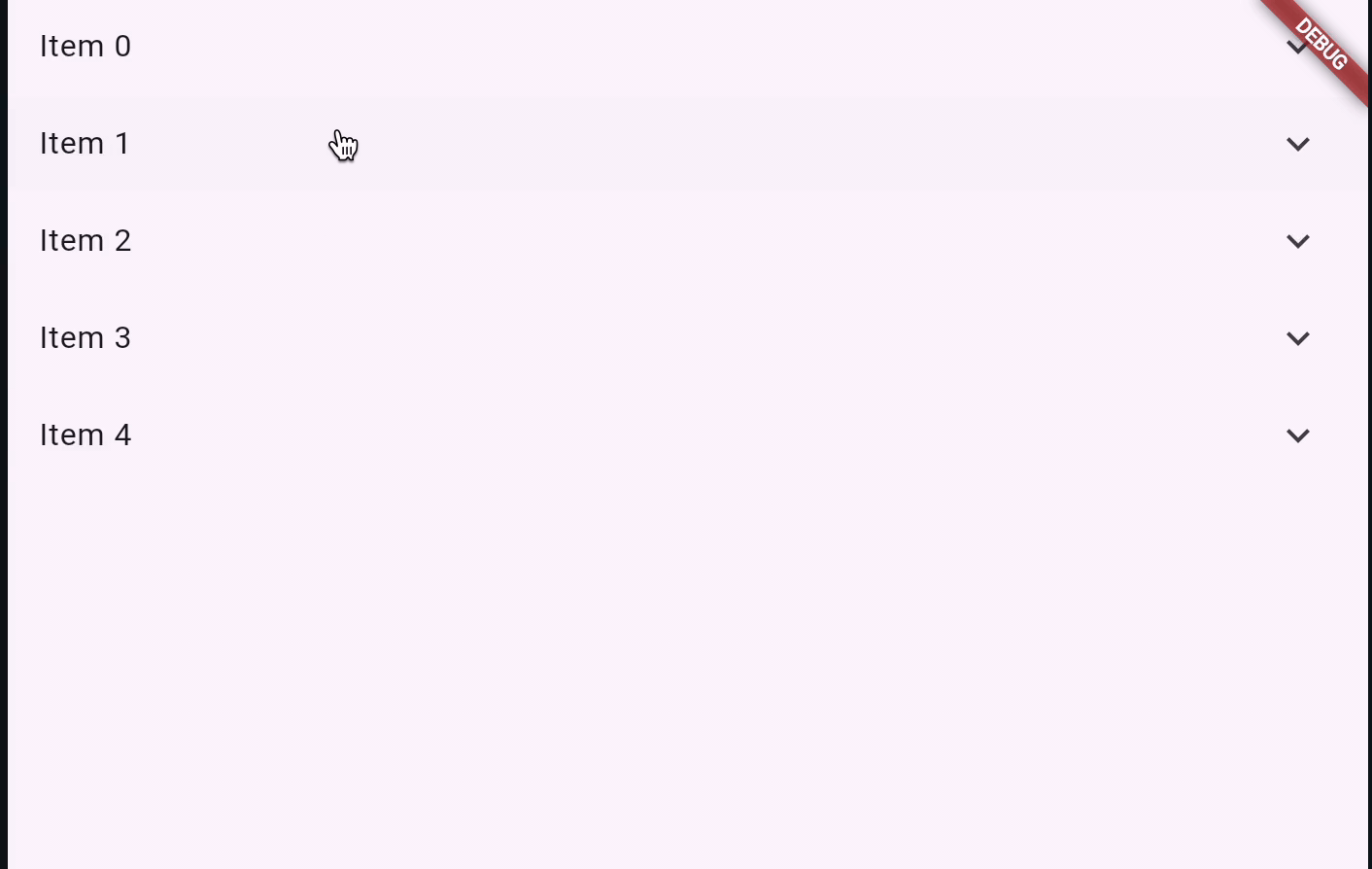

In this example, we’ve created a ListView.builder() that generates a list with five items. Each list item is an ExpansionTile. The title property of the ExpansionTile is set to display the item’s index, while the children parameter holds the sub-items that appear when the tile expands. It’s a straightforward way to create a dynamic list with expandable elements. The expand/collapse behavior of the ExpansionTile is controlled using an arrow icon.

Advanced Features of the Expansion Tile

Adding complexity and customization to your expandable list is where Flutter shines. Let’s modify our previously created ExpansionTile to use advanced features like custom icons, colors, and handling user interactions:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
ExpansionTile(
  leading: Icon(Icons.ac_unit),
  title: Text(
    'Item $index',
    style: TextStyle(color: Colors.black, fontWeight: FontWeight.bold),
  ),
  backgroundColor: Colors.grey[200],
  children: <Widget>[
    ListTile(title: Text('Sub-item 1')),
    ListTile(title: Text('Sub-item 2')),
  ],
  onExpansionChanged: (bool expanding) {
    setState(() {
      expansionStateList[index] = expanding; // Update the expansion state for the given tile
    });
  },
  trailing: expansionStateList[index] ? Icon(Icons.keyboard_arrow_up) : Icon(Icons.keyboard_arrow_down), // Use the state list to determine the icon
);

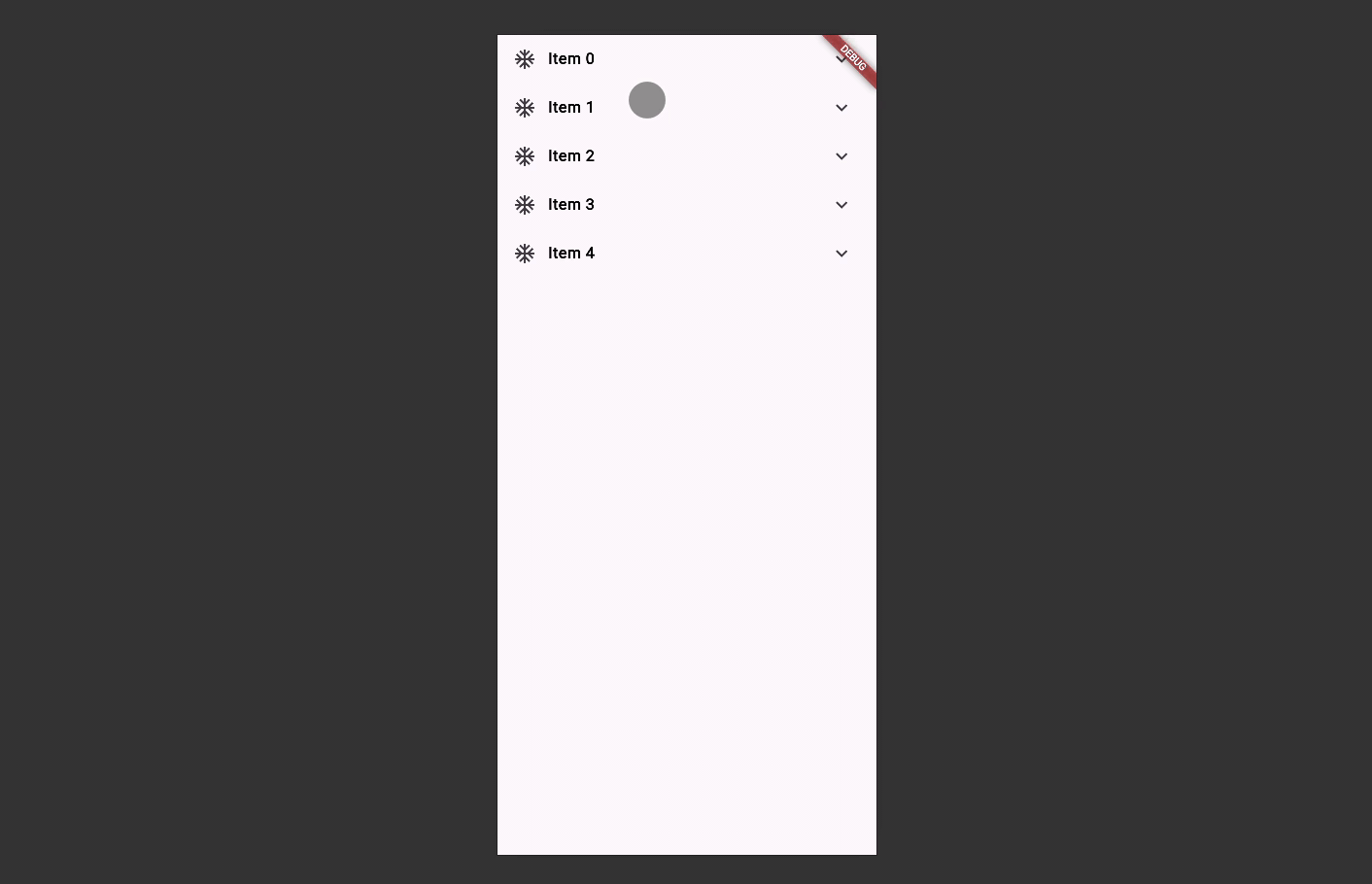

In this code snippet, we have added a leading icon using the leading property and customized the title style. The backgroundColor property enhances the visual grouping of the expanded tile. Additionally, we use the onExpansionChanged callback to react to changes in the tile’s expansion state, and we change the trailing icon depending on whether the tile is expanded or not. You can revert back to the default icon selection in the property editor when customizing the Expanded and Collapsed icons.

Expandable List View in Flutter: Adding Complexity

For more complex scenarios where we have hierarchical data to display—like in a file system or multi-level menu—the expandable list view in Flutter can be nested to reflect the data's structure:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
ExpansionTile(
  title: Text('Main Category'),
  children: <Widget>[
    ExpansionTile(
      title: Text('Sub Category 1'),
      children: <Widget>[
        ListTile(title: Text('Item 1')),
        ListTile(title: Text('Item 2')),
      ],
    ),
    ExpansionTile(
      title: Text('Sub Category 2'),
      children: <Widget>[
        ListTile(title: Text('Item 3')),
        ListTile(title: Text('Item 4')),
      ],
    ),
  ],
)

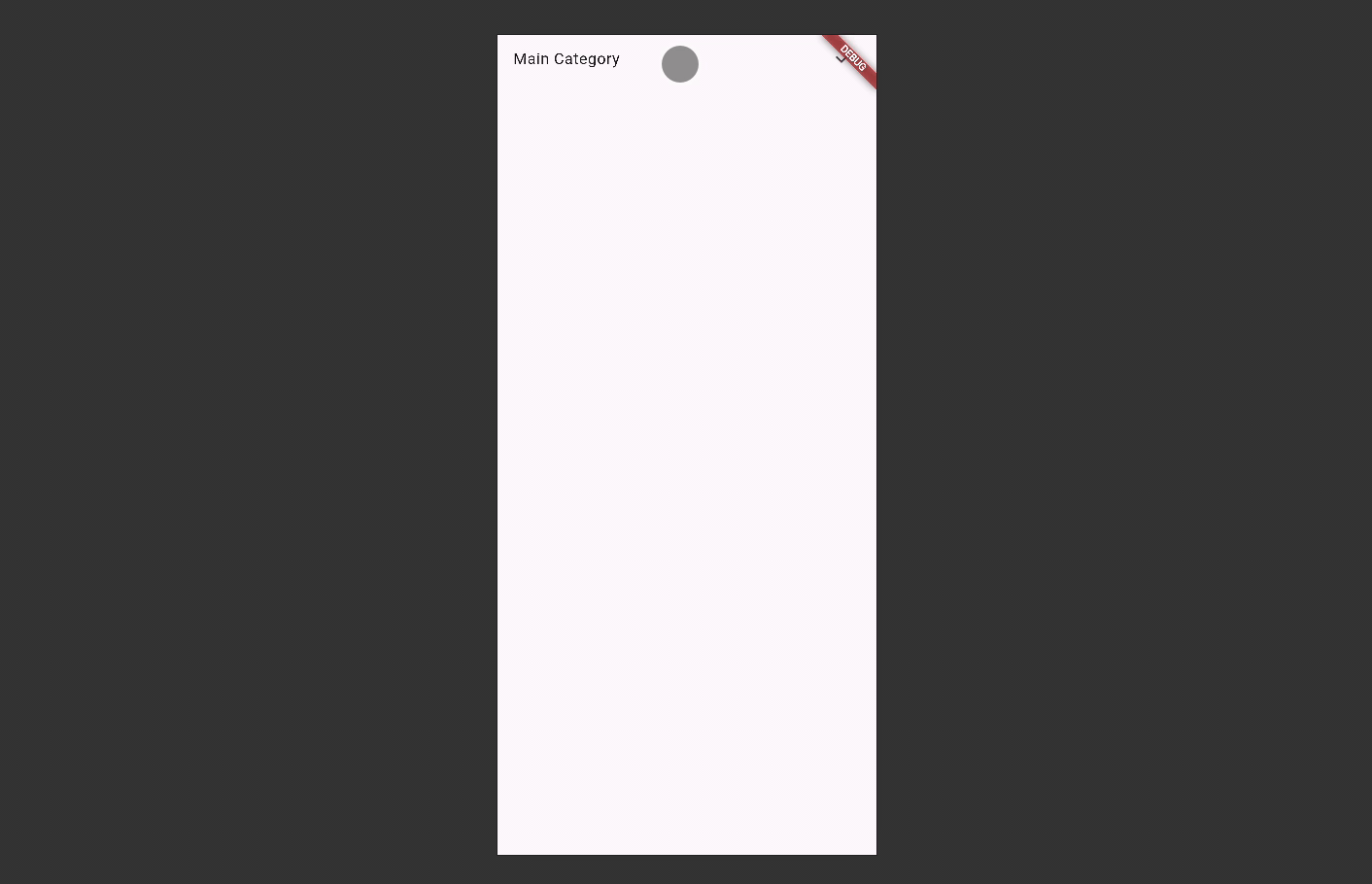

In this block of code, an ExpansionTile widget contains other ExpansionTile instances as its children, creating a nested expandable list view. The main category can expand to reveal sub-categories, each with its expandable list of items. This is crucial for maintaining a clean interface while offering access to detailed information.

When adding nested levels, performance considerations become important. You should avoid nesting too many levels deep, as this can reduce clarity and slow down the app with unnecessary complexity.

Animations and Transitions with Expanded Tile

Animations can greatly enhance the user experience by providing visual cues for the actions happening within the app. Flutter's Expanded Tile naturally uses a smooth animation when it expands or collapses. However, you can further customize these animations using the animation property if needed.

While a default animation already exists with the Expansion Tile, you can tweak it:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
ExpansionTile(
  title: Text('Animated Item $index'),
  children: <Widget>[
    ListTile(title: Text('Detail 1')),
    ListTile(title: Text('Detail 2')),
  ],
  onExpansionChanged: (bool expanded) {
    if (expanded) {
      _animationControllers[index].forward();
    } else {
      _animationControllers[index].reverse();
    }
  },
  trailing: RotationTransition(
    turns: Tween(begin: 0.0, end: 0.5)
        .animate(_animationControllers[index]),
    child: Icon(Icons.expand_more),
  ),
)

When ExpansionTile is interacted with, the onExpansionChanged callback allows you to perform additional tasks alongside the expansion or collapse of the tile.

Working with Dynamic Data in Expansions Tile Widget

Dynamic data is a common scenario in modern apps, and Flutter's Expansions Tile Widget can easily handle it. To fetch and display data from an API, you might modify the ExpansionTile to dynamically generate child widgets:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
FutureBuilder(
  future: fetchDataFromApi(),
  builder: (BuildContext context, AsyncSnapshot<List<MyData>> snapshot) {
    if (snapshot.connectionState == ConnectionState.done) {
      return ListView.builder(
        itemCount: snapshot.data.length,
        itemBuilder: (context, index) {
          return ExpansionTile(
            key: PageStorageKey('${snapshot.data[index].id}'),
            title: Text(snapshot.data[index].title),
            children: snapshot.data[index].subItems.map<Widget>((subItem) {
              return ListTile(title: Text(subItem.title));
            }).toList(),
          );
        },
      );
    } else {
      return CircularProgressIndicator();
    }
  },
)

In this snippet, a FutureBuilder widget is used to await the result of fetchDataFromApi, a hypothetical asynchronous function that retrieves data from an API. When the ConnectionState is done, it builds a ListView with ExpansionTiles for each item, and ListTiles for each sub-item using the map method and toList().

Best Practices for Using Flutter Expandable List

When implementing a Flutter Expandable List, it's essential to follow best practices for both functionality and user experience:

1. Keep the UI clean and avoid unnecessary complexity by not nesting too many levels of Expansion Tiles.

2. Ensure the expandable list is accessible, with considerations for screen readers and touch targets.

3. Apply lazy loading of data where possible to maintain performance.

4. Use proper state management techniques to keep the UI in sync with the underlying data.

5. Test on various screen sizes to ensure that the UI scales well.

Common Mistakes to Avoid with Flutter Expandable Menu

Steer clear of common pitfalls while crafting a Flutter Expandable Menu:

1. Over-designing the UI using too many animations or styles that don't contribute to user understanding.

2. Mismanaging the state leads to bugs like Expansion Tiles that don't expand or collapse correctly.

A brief code sample that can cause mismanagement of the state might look like this:

Copy
1
2
3
4
5
6
7
8
9
10
ExpansionTile(
  title: Text('Prone to Bug Item $index'),
  initiallyExpanded: _isExpanded,
  onExpansionChanged: (bool expanded) {
    setState(() {
      _isExpanded = expanded;  // This might not behave as expected
                               // if not managed correctly.
    });
  },
)

Community Resources and Support

For developers seeking assistance or wishing to contribute to the community, seek out forums like Stack Overflow, GitHub issues in the Flutter repository, or join communities such as the Flutter Dev Google Group or the Flutter Community Slack. The official Flutter documentation also provides a wealth of knowledge on ExpansionTile and related widgets.

Conclusion

The Flutter Expandable List widget is an invaluable tool in the developer's toolkit, offering sophisticated UI constructs with minimal effort. By following best practices and avoiding common pitfalls, you can create a user interface that is both efficient and enjoyable for end-users.

As we wrap up, remember that the ability to condense and expand content dynamically is not just a visual enhancement; it's a fundamental practice in crafting intuitive user interfaces in any Flutter app.

Additional Resources

For those who crave more knowledge and wish to dive even deeper into the world of Flutter and its expansive widget library, additional resources are indispensable. The Flutter community has contributed a wealth of sample codes and GitHub repositories which can be immensely helpful.

Always look for recent tutorials, as Flutter is ever-evolving, with updates that may introduce changes to how widgets work. For the most accurate and up-to-date information on ExpansionTile and other Flutter widgets, refer to the official Flutter documentation .

With these resources at your disposal, you'll be well-equipped to build beautiful, functional, and responsive applications. The journey to mastery is ongoing, and the Flutter community is here to support you every step of the way.

Thank you for reading, and happy coding!
