Architecting Flutter Apps using the MVVM Pattern

As a developer who has spent countless hours crafting applications, I understand the crucial role that architectural patterns play in the process. They are the building blocks that shape our software, guiding us as we weave together lines of code to create a functional, efficient, and maintainable product. One such pattern that has significantly influenced my approach to application development is the Model-View-ViewModel (MVVM) pattern.

The MVVM pattern in Flutter is a game-changer. It allows us to cleanly separate our business logic from the UI, ensuring that all the user events are handled in an organized manner. This pattern, also known as the Model View ViewModel, is a design pattern that helps us manage and separate the business logic inside our Flutter app.

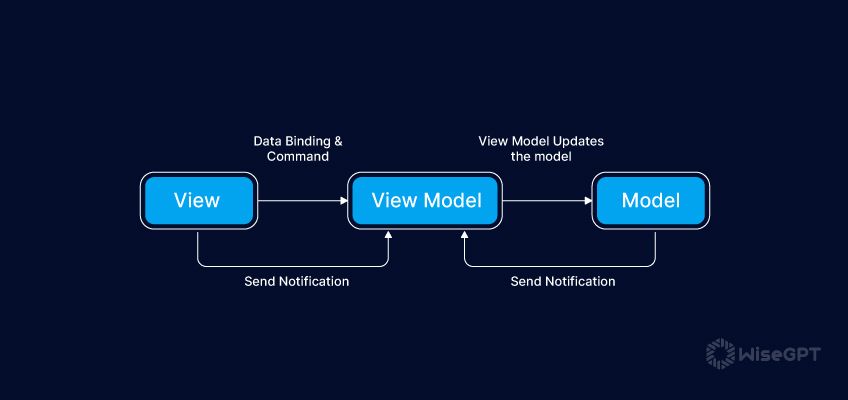

The MVVM architecture comprises three key components: the Model, the View, and the ViewModel. All the model classes, all the repository classes, and the ViewModel-related classes are the backbone of this architecture.

The Model classes in MVVM architecture are responsible for handling the business logic. They include all the utility classes, the API response model class, and local DB-related classes. These classes handle all the network requests, process the data response, and provide the final response to the ViewModel.

The View, on the other hand, is responsible for all the user events. It includes all the classes related to the UI, like the class HomeScreen. The View interacts with the ViewModel to handle user events and update the UI accordingly.

The ViewModel is the bridge between the Model and the View. It includes all the ViewModel related classes that handle user event requests and update the View. The ViewModel class uses the BuildContext context to interact with the Model and the View.

In the context of Flutter development, there are tools available that can help you automate entire app lifecycle, making it a more productive process. One such tool is WiseGPT , a plugin developed by DhiWise. WiseGPT can efficiently write the code for you to manage MVVM architecture while generating code for your application. This means it can help maintain the separation of concerns that the MVVM pattern promotes, making your codebase more organized and maintainable. It is designed to generate code for APIs into your Flutter project with no limit on the output size

‍

Understanding the Basics

‍

What is MVVM?

Model-View-ViewModel, or MVVM, is a design pattern that originated from Microsoft as a specialization of the more general Presentation Model (PM) pattern. It was designed to make use of specific features in Windows Presentation Foundation (WPF) and Silverlight.

The MVVM pattern is a variant of the classic Model-View-Controller (MVC) design pattern and is primarily used for building user interfaces. It's a key building block in software development that separates an application's UI from its logic and data. This separation is achieved by introducing a third component, the ViewModel.

Copy
1     class StoryModel {
2      final String title;
3      final String author;
4      final String summary;
5
6      StoryModel({this.title, this.author, this.summary});
7    }
8

In the above code snippet, StoryModel is an example of a Model class in our Flutter MVVM application. It represents the data (a story) that our application will work with.

‍

Why MVVM for Flutter?

When it comes to Flutter, the MVVM architecture offers a host of benefits that make it a compelling choice for application development. It's not just about separating concerns, but also about creating a scalable and maintainable codebase.

One of the key components that facilitate this is the ViewModel. The ViewModel is responsible for handling all the user events and business logic inside the application. It interacts with the Model, which includes all the model classes, all the repository classes, and all the utility classes, to process user event requests and update the View.

This separation of concerns allows us to handle all the user events in an organized manner, keeping the UI (View) clean and manageable. It also allows us to handle all the network requests, process the data response, and provide the final response to the ViewModel in a structured manner.

The ViewModel class uses the BuildContext context to interact with the Model and the View, ensuring a smooth transfer of data between the two. This is where data binding and notifying data come into play. Data binding allows us to transfer data between the Model and the View, while notifying data allows the ViewModel to update the View when the data changes.

The MVVM architecture also helps us create a clean architecture, create a folder structure that is easy to navigate, and handle all the classes in a structured manner. This makes the codebase easier to understand, maintain, and scale.

‍

Deep Dive into MVVM Architecture

Now that we've covered the basics of the MVVM architecture and why it's a great fit for Flutter, let's dive deeper into each of its components.

‍

Model

The Model in the MVVM architecture is the heart of the application. It's responsible for handling all the business logic and managing the data. The Model includes all the model classes, all the repository classes, and all the utility classes.

The model classes represent the data objects in the application. For instance, in our human stories application, a model class could represent a story, with properties like title, author, and summary.

The repository classes handle all the network requests. They interact with the web service to fetch data, process the API response, and provide the final response to the ViewModel. The repository layer acts as a mediator between the network and local DB, ensuring the data is fetched and stored correctly.

The utility classes provide helper functions that are used across the application. These could include functions for date formatting, string manipulation, or network connectivity checks.

Copy
1     class StoryModel {
2      final String title;
3      final String author;
4      final String summary;
5
6      StoryModel({this.title, this.author, this.summary});
7    }
8
9    class StoryRepository {
10      Future<StoryModel> fetchStory() {
11        // Simulate network request
12        return Future.delayed(
13          Duration(seconds: 2),
14          () => StoryModel(
15            title: 'A Flutter Story',
16            author: 'John Doe',
17            summary: 'This is a story about Flutter and MVVM.',
18          ),
19        );
20      }
21    }
22

‍

View

The View in the MVVM architecture is responsible for displaying the UI and capturing all the user events. It includes all the view-related classes, like the class HomeScreen. The View interacts with the ViewModel to handle user events and update the UI.

The View is typically implemented as a widget tree in Flutter. It uses the BuildContext context to interact with the ViewModel and update the UI based on the data it receives. The View is also responsible for capturing user events, like button clicks or text input, and forwarding them to the ViewModel.

Copy
1     class HomeScreen extends StatelessWidget {
2      @override
3      Widget build(BuildContext context) {
4        return Scaffold(
5          appBar: AppBar(
6            title: Text('Flutter MVVM Demo'),
7          ),
8          body: Center(
9            child: Text('Welcome to Flutter MVVM Demo'),
10          ),
11        );
12      }
13    }
14

‍

ViewModel

The ViewModel is the bridge between the Model and the View. It includes all the ViewModel-related classes that handle user event requests and update the View. The ViewModel uses the BuildContext context to interact with the Model and the View.

The ViewModel is responsible for handling all the user events and business logic inside the application. It interacts with the Model to process user event requests and update the View. The ViewModel also notifies the View when the data changes, allowing the UI to update automatically.

Copy
1     class StoryViewModel {
2      final StoryRepository _storyRepository;
3
4      StoryViewModel(this._storyRepository);
5
6      Future<StoryModel> getStory() {
7        return _storyRepository.fetchStory();
8      }
9    }
10

‍

Setting Up the Flutter Environment for MVVM

Before we start building our application using the MVVM pattern in Flutter, we need to set up our Flutter environment correctly. This involves installing the necessary tools and packages that will help us implement the MVVM architecture effectively.

‍

Flutter SDK

First and foremost, we need to have the Flutter SDK installed on our machine. The Flutter SDK includes the Dart SDK, Flutter command-line tools, and the Flutter Widget Inspector, which are essential for Flutter development.

‍

Dart and Flutter Plugins

If you're using an IDE like IntelliJ IDEA or VS Code, make sure to install the Dart and Flutter plugins. These plugins provide features like syntax highlighting, code completion, widget editing assists, and more, which significantly enhance the Flutter development experience.

‍

Packages

There are several packages available that can help us implement the MVVM architecture in Flutter. Here are a few that I find particularly useful:

• Provider: This is a state management package recommended by the Flutter team. It provides a way to manage and provide data to widgets in the widget tree.
• Dio: This is a powerful HTTP client for Dart, which supports Interceptors, Global configuration, FormData, Request Cancellation, File downloading, Timeout, etc. It's very useful for making network requests in our repository classes.
• Hive: This is a lightweight and fast NoSQL database in pure Dart. It's perfect for storing the API response model class and other local DB related classes.
• GetIt: This is a simple service locator for Dart and Flutter, which allows us to implement the dependency injection pattern in our Flutter application.

‍

Testing in MVVM

Testing is a critical part of any application development process. In the MVVM architecture, each component (Model, View, ViewModel) can be tested independently, making the testing process more manageable and efficient.

‍

Unit Testing

In unit testing, we test individual units of code in isolation. In the context of MVVM, this means testing the Model, View, and ViewModel separately.

• Model: We can test the Model by mocking the data and checking if the Model processes the data correctly. This includes testing all the model classes, all the repository classes, and all the utility classes.
• View: We can test the View by rendering it in a test environment and verifying that it displays the correct UI based on the data it receives from the ViewModel. We can also simulate user events and check if they're handled correctly.
• ViewModel: We can test the ViewModel by providing it with mock data and checking if it processes the data correctly and updates the View as expected.

‍

Integration Testing

Integration testing involves testing multiple components of the application together to ensure they work correctly as a whole. In the context of MVVM, this means testing how the Model, View, and ViewModel interact with each other.

For example, we can test the flow of data from the Model to the View via the ViewModel. We can provide the ViewModel with mock data, trigger a user event in the View, and check if the View updates correctly based on the data from the ViewModel.

Testing is a crucial part of the MVVM architecture, as it ensures that each component works correctly on its own and in conjunction with the other components. By investing time in testing, we can catch and fix bugs early, prevent regressions, and ensure that our application works as expected.

‍

Common Pitfalls and How to Avoid Them

While the MVVM architecture offers many benefits, there are common pitfalls that developers may encounter when implementing it in Flutter. Being aware of these pitfalls and knowing how to avoid them can help ensure a smoother development process.

‍

Tight Coupling Between Components

One common pitfall is creating a tight coupling between the Model, View, and ViewModel. This can make the code harder to maintain and test.

To avoid this, ensure that each component is independent and knows as little as possible about the others. Use interfaces to define the interactions between components, and avoid having one component directly reference another.

‍

Overcomplicating the ViewModel

Another common pitfall is overcomplicating the ViewModel by including too much logic or state. This can make the ViewModel difficult to understand and test.

To avoid this, keep the ViewModel simple and focused. It should only contain the minimum logic needed to mediate between the Model and the View. Any complex business logic should be placed in the Model or in separate service classes.

‍

Ignoring State Management

Ignoring state management can lead to issues like inconsistent UI or unnecessary network requests. This is especially important in the MVVM architecture, where the ViewModel is responsible for managing the state and updating the View.

To avoid this, consider using a state management solution like Provider or Riverpod. These packages can help manage the state in a predictable way and update the UI efficiently when the state changes.

‍

Neglecting Folder Structure

Neglecting the folder structure can lead to a disorganized codebase, making it harder to navigate and maintain.

To avoid this, organize your codebase following a logical structure. For instance, you could have separate folders for models, views, and viewModels. This will make it easier to find and work with different parts of your codebase.

Embracing MVVM and WiseGPT : A New Standard in Flutter App Development

In conclusion, the Model-View-ViewModel (MVVM) pattern is a powerful architectural design that can significantly enhance your Flutter app development process. By cleanly separating the business logic from the UI, it allows for a more organized, scalable, and maintainable codebase. Each component - the Model, View, and ViewModel - plays a crucial role in the application, and understanding their interactions is key to leveraging the full potential of this architecture.

Moreover, tools like WiseGPT can further streamline your development process. WiseGPT is a plugin that generates code for APIs into your Flutter project, mirroring your coding style and auto-creating models and functions. It can help you follow the MVVM architecture, helping maintain the separation of concerns that the pattern promotes, thus making your codebase more organized and maintainable.

In the fast-paced world of software development, mastering architectural patterns like MVVM can be your secret weapon. But when you couple this with the power of WiseGPT, you're not just following a pattern, you're setting a new standard in app development.

So why not give WiseGPT a try?

Embrace the MVVM pattern, and elevate your Flutter app development to new frontiers.
