Transformer Architecture: Key Concepts and Structure

What makes AI models so good at understanding language today?

One big reason is the transformer architecture. It changed the way machines read and process text.

Since 2017, this design has powered tools we use every day—like translators, chatbots, and content generators. In addition to natural language processing, it's also helping in areas like image analysis, and the progress hasn’t stopped.

By 2025, new models like Google’s Titans and Sakana’s Transformer Squared will push the limits even further.

This blog will explain how the transformer works, examine parts like self-attention and positional encoding, and discuss what’s new in this space.

Let’s keep it simple and clear.

What is Transformer Architecture?

Transformer architecture, introduced in the groundbreaking 2017 paper "Attention Is All You Need ", revolutionized how AI handles sequential data. Unlike previous models like recurrent neural networks (RNNs), transformers process entire input sequences simultaneously using a self-attention mechanism, allowing for better performance in tasks like machine translation, text generation, and speech recognition.

This architecture is foundational to large language models (LLMs) such as GPT and BERT, which rely on transformers to generate human-like text and answer questions. Let's break down the components that make up this powerful model.

Overview of Transformer Components

The transformer consists of two main parts:

1. Encoder: Processes the input data into a more meaningful representation.

2. Decoder: This function uses the encoder’s output to generate the final sequence, whether a translated sentence or a predicted next word.

The Self-Attention Mechanism

The self-attention mechanism is at the heart of transformers, enabling them to track relationships between all input tokens, regardless of their positions. By calculating attention scores for each token in the sequence, the model determines which tokens are important for understanding the meaning of a particular word in context.

Multi-Head Attention

Rather than using a single attention head, transformers utilize multi-head attention, which splits the attention mechanism into several "heads." This allows the model to capture different relationships and dependencies between tokens simultaneously, improving its performance across various NLP tasks.

Positional Encoding

Unlike RNNs, transformers do not inherently process sequential data in a time-dependent order. Transformers use positional encoding to ensure that the model can account for the position of tokens in the input sequence. This information is added to the input tokens to provide a sense of order.

Positional encoding allows transformers to understand the relative positions of tokens within the sequence, enabling the model to make predictions based on the tokens' content and order.

How Does Transformer Architecture Work?

At a high level, the transformer operates as follows:

1. Input Sequence: The input sequence is broken into tokens, each passing through an embedding layer to convert it into a numerical representation.

2. Self-Attention Layer: The self-attention mechanism computes attention scores for each token in the sequence.

3. Multi-Head Attention: Multiple attention heads are applied to capture different aspects of the sequence.

4. Feed-Forward Neural Network: After the attention layers, the output passes through a feed-forward network to refine the representation further.

5. Residual Connections: Residual connections aid in the flow of information through the network and avoid issues like the vanishing gradient problem, ensuring that the model learns efficiently.

6. Normalization Layers: After each attention and feed-forward operation, the model applies layer normalization to stabilize and speed up training.

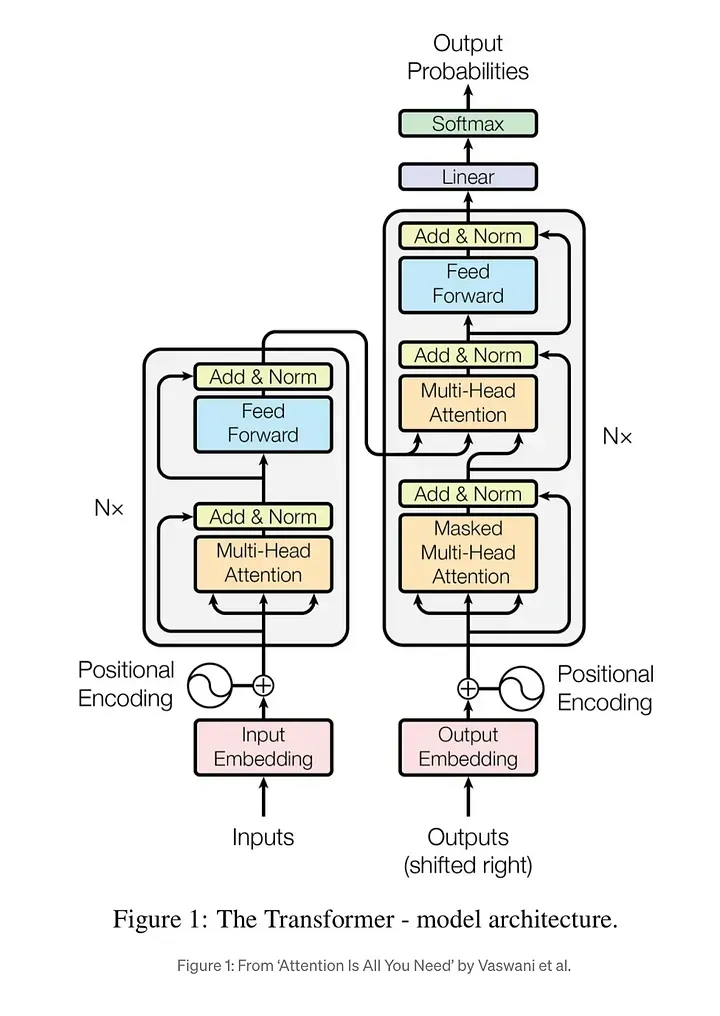

The following mermaid diagram illustrates the structure of a transformer model:

​

Understanding Transformer Models and Their Evolution

Transformer Models in NLP

Transformer models have proven exceptionally effective for natural language processing (NLP) tasks. The self-attention mechanism enables models like GPT and BERT to process input data more efficiently and handle long-range dependencies. These models excel in tasks like language modeling, which predicts the next word in a sequence, and machine translation, where the model translates text from one language to another.

BERT and GPT: Breakthroughs in NLP

• BERT (Bidirectional Encoder Representations from Transformers) is designed to understand context in both directions, making it more effective for answering questions and sentiment analysis tasks.

• GPT (Generative Pre-trained Transformer) is optimized for text generation, making it highly capable of producing coherent text when given an input sequence.

New Developments in Transformer Models

Transformer models have evolved significantly as of 2025. Innovations, such as Google's Titans and Sakana's Transformer Squared, address the limitations of traditional transformers, such as handling long contexts and improving computational efficiency.

[h5] Google’s Titans: A Step Toward Memory-Enhanced Transformers

Google’s Titans introduce a neural long-term memory module that combines short-term, long-term, and persistent memory. This enables the model to process sequences of over 2 million tokens, greatly enhancing its ability to handle tasks requiring deep context understanding, such as language modeling and genomics.

[h5] Sakana’s Transformer Squared: Real-Time Adaptability

Sakana’s Transformer Squared uses a two-pass mechanism and Singular Value Fine-tuning (SVF) to dynamically adapt to different tasks in real-time. This is especially useful when a model needs to adjust its behavior without extensive retraining, making it versatile for out-of-distribution applications.

Advantages of Transformer Models

1. Parallel Processing: Unlike RNNs, which process data sequentially, transformers can process all tokens in parallel. This results in faster training and inference times.

2. Handling Long-Range Dependencies: The self-attention mechanism is particularly effective at capturing long-range dependencies in data, such as in machine translation and text summarization.

3. Scalability: Transformers scale well to large datasets and complex tasks, making them ideal for large language models (LLMs) and other advanced applications.

4. Flexibility: Transformer models can be adapted to various tasks, from speech recognition to image generation.

Challenges and Limitations

Despite their successes, transformers face several challenges:

• Quadratic Scaling: The attention mechanism scales quadratically with the sequence length, leading to high memory usage and slower inference times for long sequences. This limitation has led to developing models like Longformer, which can handle longer contexts more efficiently.

• Compute Efficiency: Transformers require significant computational resources, especially for training large models. Innovations like DeepSeek's Mixture-of-Experts (MoE) and multi-token prediction aim to address these inefficiencies.

What’s Next for Transformer Models?

As AI continues evolving, transformer architecture will likely see even more innovations. We may see new architectures that complement or even replace transformers for certain tasks, focusing on computing efficiency and handling longer contexts more effectively.

Comparative Analysis of New Architectures

Here is a table comparing some of the new architectures with traditional transformers:

New Architecture	Developer	Key Features	Performance Improvements
Titans	Google Research	Combines short-term, long-term, and persistent memory; handles sequences over 2 million tokens.	Significant in language modeling, genomics, and common-sense reasoning.
Transformer Squared	Sakana AI	Real-time adaptability through two-pass mechanism; uses Singular Value Fine-tuning (SVF).	Improved versatility across tasks, real-time task-specific adaptation.

Final Thoughts!

Transformer architecture has come a long way since its introduction in 2017. Today, it remains at the heart of many state-of-the-art AI models, particularly in natural language processing and machine translation. While transformer models continue to dominate, emerging architectures like Titans and Transformer Squared suggest that the field is evolving. With innovations aimed at improving compute efficiency, handling long-range dependencies, and adapting to new tasks, transformers will likely continue to shape the future of AI for years to come.

By understanding the inner workings of transformer architecture, including key concepts like self-attention, multi-head attention, and positional encoding, we better appreciate how these models process sequential data and generate highly accurate predictions. As new models emerge and existing ones improve, we can expect to see even more powerful and efficient AI systems in the future.
