Blueprint to Brilliance: Mastering the Art of Clean Architecture in Flutter

When it comes to developing scalable and maintainable applications, the architectural pattern plays a crucial role. Among various architectures, Clean Architecture has grown in popularity for its ability to make the software easy to understand, maintain and expand. Today, we'll dig into the Clean Architecture in Flutter and explore how it can elevate your Flutter development skills.

‍

Understanding Clean Architecture

Clean Architecture is a software design philosophy that allows developers to separate different concerns of software into various layers, making it more maintainable and testable. Robert C. Martin, often known as Uncle Bob, introduced it to provide developers with a way of organizing the code that adheres to the SOLID principles and allows for the high decoupling of the software's various parts.

‍

Why Use Clean Architecture in Flutter?

Clean Architecture in Flutter holds immense potential due to the many benefits it offers. Flutter’s impressive UI capabilities combined with a solid architectural foundation enhance the app’s maintainability, scalability, and testability. Moreover, this tactic allows developers to write modular code, which ultimately leads to an optimized Flutter architecture.

Navigating the implementation of Flutter clean architecture might be a bit challenging for some, but the subsequent rewards in terms of improved codebase quality and efficient development are worth the effort.

‍

Key Principles of Clean Architecture

To effectively implement Clean Architecture, it's crucial to grasp its underlying principles. Understanding these will provide a solid foundation for establishing a well-structured Flutter architecture.

‍

Key Principles of Clean Architecture

‍

Separation of Concerns

The principle of separation of concerns is fundamental to Clean Architecture. It involves the process of breaking a software application into distinct sections, each addressing a separate concern. This means different logic and functions are put in separate layers, improving the overall readability and maintainability of the code.

Here is an example of how you might separate the concerns in a typical Flutter function:

Copy
1     void main() {
2      runApp(MyApp());
3    }
4
5    class MyApp extends StatelessWidget {
6      @override
7      Widget build(BuildContext context) {
8        return MaterialApp(
9          home: Scaffold(
10            appBar: AppBar(title: Text('Home')),
11            body: Center(
12              child: Text('Hello, World!'),
13            ),
14          ),
15        );
16      }
17    }
18

‍

Testability

Testability is another key principle of Clean Architecture. In Flutter, this is important because it allows for unit tests, widget tests, and integration tests to ensure the correctness of an application. By making use of Clean Architecture principles, components become more defined, encapsulated, and therefore, easier to test individually. This increases the overall reliability of the application.

‍

Independence of Frameworks

Clean Architecture is not dependent on the existence of some library of feature-laden software. It allows the Flutter framework and additional libraries to be plugged and unplugged from the system without causing any disturbance to internal functionalities. This means we can switch databases, UI libraries, or any external dependencies without affecting the app's core logic.

In essence, Clean Architecture provides a road map towards a simplified and solid code base. By adhering to these principles in Flutter app development, the result is an app structure that is easily navigable, understandable, and maintainable.

‍

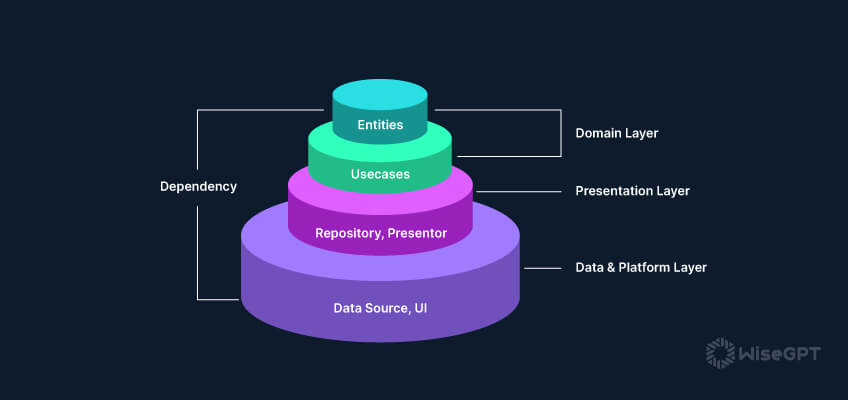

Clean Architecture Diagram and Explanation

Let's examine the Clean Architecture diagram layer by layer and discuss how each relates to Flutter development. The Clean Architecture separates the software into layers with defined responsibilities, which are represented visually by concentric circles.

‍

Clean Architecture Diagram and Explanation

‍

Outer Layer: Frameworks and Drivers

The outermost layer contains all the "high-level" tools we use, which provide a means for user interaction and the system's running environment. In Flutter, this includes the UI rendered by the Flutter SDK and any other databases or third-party services. This layer consists of frameworks and tools like Flutter itself and device interfaces like HTTP services, database drivers, and UI widgets.

‍

Second Layer: Interface Adapters

The next layer, the Interface Adapters, transforms data between the outermost and the inner layers. For a typical Flutter app, this layer will include things like your Flutter widget tree and models necessary to render your UI.

Here's an example of a simple Flutter widget translating the details of an object for display:

Copy
1     class DetailScreen extends StatelessWidget {
2      final Item item;
3
4      DetailScreen({required this.item});
5
6      @override
7      Widget build(BuildContext context) {
8        return Scaffold(
9          appBar: AppBar(title: Text(item.name)),
10          body: Center(
11            child: Text('Item Details:\nName: ${item.name}\nID: ${item.id}'),
12          ),
13        );
14      }
15    }
16

‍

Third Layer: Application Business Rules

This layer, also known as the Use Case layer, contains specific business rules of the application. It's where the software's intended functionality is implemented without any influence from external entities. This encapsulation of business rules allows changes to system operation without affecting entity lifecycles.

‍

Inner Layer: Enterprise Business Rules

The innermost layer, the Entities, or Enterprise Business Rules, are the business objects of the application. These rules are critical to business and would likely be shared across different systems in an enterprise. For instance, if there's a business rule that salary must not be disclosed, an entity 'employee' might have a variable 'salary' as private.

Each layer of the Clean Architecture has a specific role and operates independently of the others. This independence is crucial in building a Flutter app that is scalable, maintainable, and easily understood by developers at first glance.

‍

Flutter Clean Architecture in Practice

Now that we've covered the theory of Clean Architecture, let's explore its practical application in Flutter. Setting up clean architecture involves a deliberate process aimed at maximizing maintainability and testability.

‍

Setting up the Flutter Project

Before diving into implementing the layers, it is important to set up your Flutter project correctly. This includes deciding on your project structure, which can be as simple or intricate as necessary, depending on the complexity of the app. The idea is to establish a file/folder structure that aligns with the layering system described in the Clean Architecture.

For example, your directory structure might look like this:

• lib/
• main.dart
• presentation/
• domain/
• data/

Here, the presentation corresponds to the UI and Flutter Widgets, the domain contains business logic and use cases, and data includes network calls or database-related features.

‍

Configuring the Clean Architecture Layout

When laying out your project, remember to align the layout to CLEAN principles: Entities at the centre (domain), Use Cases surrounding Entities, Interface adapters encapsulating Use cases (data & presentation), and the Framework and Drivers at the outermost (Flutter SDK and third-party packages).

This layout isn't merely a theoretical construct - it's practical and efficient. Each entity encapsulates its own behaviour and doesn't rely on any external entity to function correctly.

‍

Implementing the Layers

After the project setup, the main task is to properly implement all the layers following the Clean Architecture principles.

‍

Building the Data Source Layer

The Data source layer serves as the bridge between your app and its external dependencies, such as a database or an API service.

Copy
1     class DataSource {
2      Future<String> fetchDartRepositories() async {
3        final response =
4          await http.get('https://api.github.com/users/dart-lang/repos');
5        return response.body;
6      }
7    }
8

This is an example of a simple data source which fetches repositories of the user 'dart-lang' from GitHub. Your actual data source implementation could be more complex.

‍

Building the Repository Layer

The Repository Layer is closely related to the data source layer. It acts as the single source of truth for the app's data. It retrieves data from the data source layer and serves it to the use case layer.

Copy
1     class Repository {
2      final DataSource source;
3
4      Repository({required this.source});
5
6      Future<String> getAllRepositories() async {
7        return await source.fetchDartRepositories();
8      }
9    }
10

‍

Building the Use Cases Layer

The Use Case layer, which refers to application-level rules, uses the repositories to fulfil user stories.

Copy
1     abstract class UseCase<Type, Params> {
2      Future<Type> call(Params params);
3    }
4
5    class GetRepositories implements UseCase<String, NoParams> {
6      final Repository repository;
7
8      GetRepositories(this.repository);
9
10      @override
11      Future<String> call(NoParams params) async {
12        return repository.getAllRepositories();
13      }
14    }
15

‍

Building the Feature/Presentation Layer

The feature or presentation layer, the last layer in our architecture, connects the user interface to the use cases and presents data to the user.

Copy
1     class MyApp extends StatelessWidget {
2      final GetRepositories getRepositories;
3
4      MyApp({required this.getRepositories});
5
6      @override
7      Widget build(BuildContext context) {
8        return MaterialApp(
9          home: Scaffold(
10            appBar: AppBar(title: Text('Home')),
11            body: FutureBuilder<String>(
12              future: getRepositories(params: NoParams()),
13    ...
14

Every layer requires careful implementation to respect the principles of Clean Architecture. Each layer's encapsulation ensures the integrity and independence of your app's features, easing further development and maintenance.

‍

Benefits of Using Clean Architecture in Flutter

Embracing Clean architecture in Flutter not only structures your codebase but also brings in a host of benefits that optimize the overall development process.

‍

Increased Testability

Since the clean architecture principles lead to an application that is decoupled and has separate layers of concern, it is easier to write tests for your code. Each isolated layer can be tested individually, which means changes in one layer will not affect the tests on another layer.

‍

Improved Scalability

Clean Architecture provides an organized structure that supports the expansion of the system whenever necessary. As your Flutter app grows, maintaining a good product experience becomes a challenge. However, with a Clean Architecture, the scalability problem is handled in an optimally efficient way.

‍

Enhanced Readability and Maintenance Enhancements

As each segment of the code has a specific role and function, the developers or even third-party service providers find navigation through the project, identification of bugs/issues, and the implementation of new features easier. This significantly reduces the time and resources consumed during the maintenance phase of the software development lifecycle.

‍

High Code Quality with Reduced Dependence

By implementing Clean Architecture, you can keep the code decoupled and maintain high-quality code standards. The interaction between the different layers of the app through defined interfaces and data flow results in a more understandable and readable codebase. The principle of less dependence enhances the reusability of code across the app, boosting the code's efficiency.

The use of Flutter Clean Architecture can be a real game-changer in handling massive projects with several integrations. It might take a bit of extra time initially to set everything up, but the long-term benefits it offers are worth it.

‍

Challenges and Hurdles of Implementing Clean Architecture in Flutter

While implementing Clean architecture in Flutter affords developers many benefits, it's essential to discuss that there might be a few challenges and hurdles when starting this journey. Awareness of these potential roadblocks will keep you prepared and help in a smoother transition.

‍

Learning Curve

Clean architecture, with its various layers and separation of concerns, can undoubtedly present a steep learning curve, particularly for developers new to these concepts. However, given the advantages it offers, the time and effort spent are certainly worthwhile.

‍

Over-engineering Risks

Given the separation at various layers, there's a risk of over-engineering, especially for small, straightforward projects where such a detailed level of separation might not be required. As with everything in software development, it’s important to 'use the right tools for the job'. Always assess if your project will benefit from the level of abstraction that Clean Architecture provides.

‍

Increased Upfront Development Time

Initially, setting up Clean Architecture takes more time than traditional techniques due to its layered nature and detailed organization. But remember, the time spent in the early stages of development refactoring to adhere to the tenets of clean architecture always pays off in the long run, particularly for complex projects.

Though these challenges might seem daunting initially, the pay-offs of gaining ease of testing, readability, and scalability are well worth the trade-off. Following clean architecture principles allows teams to write flexible, maintainable code that aligns well with business, ensuring the utility of the Flutter project for a long time.

‍
