Flutter Row Overflow: Causes, Scenarios, and Solutions

Ever found yourself in a pickle, scratching your head over a Flutter Row Overflow issue? You're not alone! It's a common problem that many of us face while developing with Flutter. But don't worry, it's not an unsolvable mystery. Let's dive into the world of Flutter Row Overflow and see how we can tackle this issue together. This problem arises when the children of a row widget, such as a text widget, exceed the available horizontal space within the row.

‍

About Flutter Row Widget

‍

Definition and Use of Row Widget

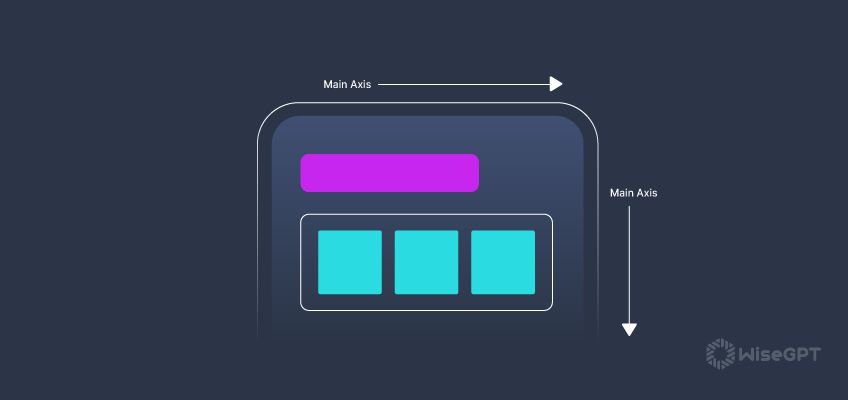

In Flutter, the Row widget is a fundamental building block used for creating layouts. It arranges its child widgets along the horizontal direction. The main axis of a row widget is horizontal, meaning the children are laid out horizontally.

1     Row(
2      children: <Widget>[
3        Icon(Icons.star, size: 50),
4        const Text('Star'),
5      ],
6    )
7

In the above example, the Row widget contains two child widgets: an Icon widget and a Text widget. The Icon widget is displayed first, followed by the Text widget, in a horizontal line.

The Row widget is particularly useful when you want to display multiple widgets side-by-side. However, it's important to note that the Row widget does not handle overflow well. If the combined width of the child widgets exceeds the available horizontal space, the widgets will overflow, leading to layout issues.

‍

Properties of Row Widget

The Row widget comes with several properties that allow you to control how its children are laid out. Some of these properties include:

• MainAxisAlignment: This property determines how the children are aligned along the main axis (i.e., the horizontal direction for a row). For example, you can align the children at the start, end, center, or space them evenly.
• CrossAxisAlignment: This property determines how the children are aligned along the cross axis (i.e., the vertical direction for a row). For example, you can align the children at the top, bottom, center, or stretch them to fill the vertical space.
• TextDirection: This property determines the order in which the children are laid out. For instance, you can layout the children from left to right or right to left.
• VerticalDirection: This property determines the order in which the children are positioned vertically. For instance, you can position the children from top to bottom or bottom to top.
• Overflow: This property determines how to handle children that overflow the available space. By default, the overflow property is set to clip, meaning the children that overflow are clipped. However, this can lead to layout issues, as we've discussed earlier.

1     Row(
2      mainAxisAlignment: MainAxisAlignment.center,
3      crossAxisAlignment: CrossAxisAlignment.start,
4      textDirection: TextDirection.ltr,
5      verticalDirection: VerticalDirection.down,
6      overflow: Overflow.visible,
7      children: <Widget>[
8        Icon(Icons.star, size: 50),
9        const Text('Star'),
10      ],
11    )
12

‍

Understanding Flutter Row Overflow

‍

What is Flutter Row Overflow?

Flutter row overflow is a common issue that occurs when the combined width of the child widgets within a row exceeds the available horizontal space. This results in the child widgets overflowing beyond the boundaries of the row widget.

1     Row(
2      children: <Widget>[
3        const Text('This is a really really really long text that will overflow'),
4        Icon(Icons.star, size: 50),
5      ],
6    )
7

In the above example, the Text widget contains a really long text that exceeds the available horizontal space within the Row widget. As a result, the text overflows and the Icon widget is pushed out of the screen.

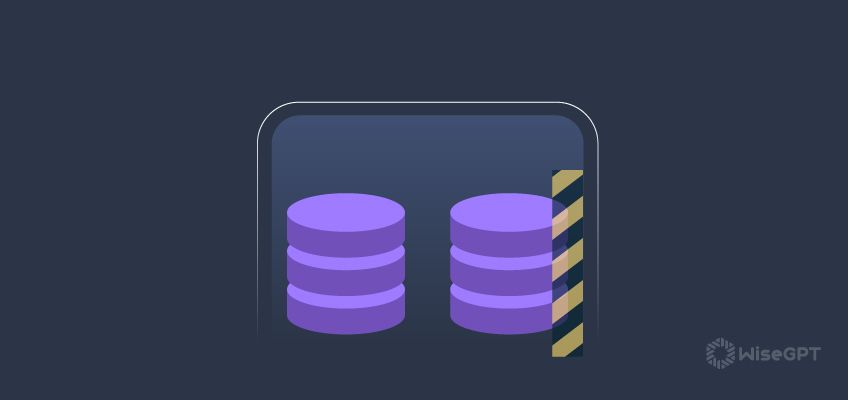

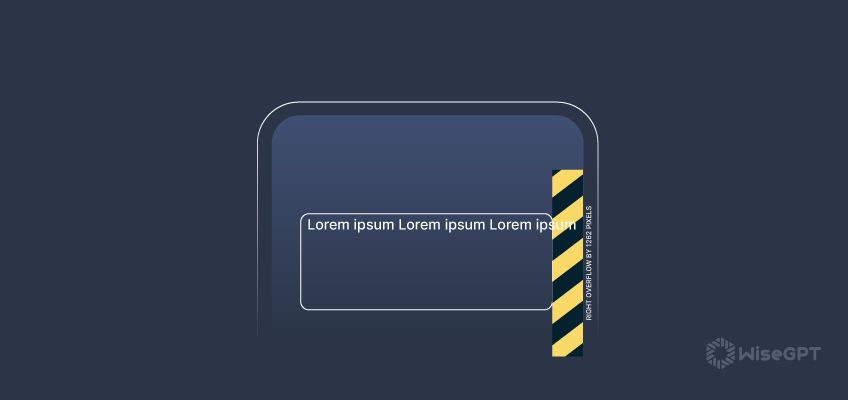

When a row overflow occurs, Flutter displays a yellow and black striped warning area along the overflowed side. This is a visual indicator that some widgets have overflowed.

‍

Causes of Flutter Row Overflow

The primary cause of Flutter row overflow is the lack of space management in the row widget. By default, the row widget does not wrap its children to the next line when the available horizontal space is exhausted. Instead, it tries to display all its children in a single line, regardless of their combined width.

Another cause of row overflow is the use of widgets with a fixed width that is larger than the available space. For example, if you use a Container widget with a fixed width that is larger than the available space in the row, it will cause an overflow.

1     Row(
2      children: <Widget>[
3        Container(
4          width: 500,
5          child: const Text('This container is too wide for the row'),
6        ),
7        Icon(Icons.star, size: 50),
8      ],
9    )
10

In the above example, the Container widget has a fixed width of 500 pixels, which may be too wide for the available space in the row, causing an overflow.

‍

Common Scenarios of Flutter Row Overflow

‍

Using Text Widget in Row

One of the most common scenarios of Flutter row overflow occurs when using a Text widget in a Row. If the text is too long to fit within the available horizontal space, it will overflow, causing a layout issue.

1     Row(
2      children: <Widget>[
3        const Text('This is a really really really long text that will overflow'),
4        Icon(Icons.star, size: 50),
5      ],
6    )
7

In the above example, the Text widget contains a really long text that exceeds the available horizontal space within the Row widget. As a result, the text overflows and the Icon widget is pushed out of the screen.

‍

Using Image Widget in Row

Another common scenario of row overflow is when using an Image widget in a row. If the image is too wide to fit within the available horizontal space, it will overflow.

1     Row(
2      children: <Widget>[
3        Image.network('https://example.com/image.jpg', width: 500),
4        Icon(Icons.star, size: 50),
5      ],
6    )
7

In the above example, the Image widget has a fixed width of 500 pixels, which may be too wide for the available space in the row, causing an overflow.

‍

Using Container Widget in Row

Row overflow can also occur when using a Container widget in a row. If the Container widget has a fixed width that is larger than the available space, it will cause an overflow.

1     Row(
2      children: <Widget>[
3        Container(
4          width: 500,
5          child: const Text('This container is too wide for the row'),
6        ),
7        Icon(Icons.star, size: 50),
8      ],
9    )
10

In the above example, the Container widget has a fixed width of 500 pixels, which may be too wide for the available space in the row, causing an overflow.

‍

How to Identify Flutter Row Overflow

‍

Visual Indicators of Overflow

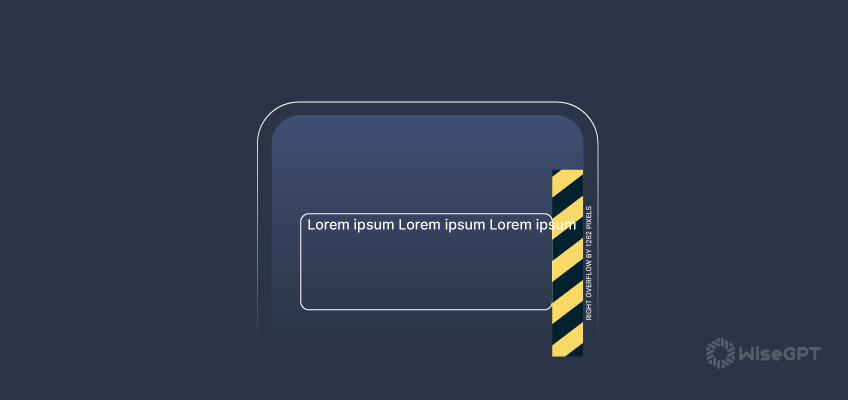

Flutter provides visual indicators to help you identify when a row overflow occurs. When the child widgets of a row exceed the available horizontal space, Flutter displays a yellow and black striped warning area along the overflowed side. This warning area is a clear visual indicator that some widgets have overflowed.

For instance, consider a scenario where you have an Image widget with a large width that overflows the available space in a Row widget. In such a case, you will see the yellow and black striped warning area at the end of the row.

1     Row(
2      children: <Widget>[
3        Image.network('https://example.com/large-image.jpg', width: 500),
4        Icon(Icons.star, size: 50),
5      ],
6    )
7

In the above example, the Image widget has a width of 500 pixels, which exceeds the available horizontal space within the Row widget. As a result, the image overflows, pushing the Icon widget out of the screen, and a yellow and black striped warning area is displayed.

‍

Debugging Overflow Errors

In addition to the visual indicators, Flutter also provides error messages in the console when an overflow occurs. These error messages can help you identify the cause of the overflow and guide you toward a solution.

For example, if a Text widget overflows the available space in a Row widget, you might see an error message like this in the console:

1     ════════ Exception caught by rendering library ═════════════════════════════════
2    The following assertion was thrown during layout:
3    A RenderFlex overflowed by 28 pixels on the right.
4
5    The relevant error-causing widget was:
6      Row file:///path/to/your/flutter/code.dart:23:12
7

This error message tells you that a Row widget has overflowed by 28 pixels on the right. It also tells you the location of the error-causing widget in your code.

‍

Methods to Resolve Flutter Row Overflow

‍

Using Flexible Widget

The Flexible widget is one of the methods to resolve the Flutter row overflow issue. It allows its child widget to flex in the main axis direction, taking up the remaining space after allocating fixed width to other widgets. The flex factor determines how much space the Flexible widget should occupy relative to other Flexible widgets in the same row or column.

‍

Using Expanded Widget

The Expanded widget is another method to resolve the Flutter row overflow issue. It's a shorthand of the Flexible widget with a flex factor of 1 and a tight fit. The Expanded widget expands to fill the available space in the main axis direction.

‍

Using Wrap Widget

The Wrap widget is a powerful method to resolve the Flutter row overflow issue. It automatically wraps its children to the next line when there is not enough space in the horizontal direction. It's like a row widget that supports line breaks.

Best Practices to Avoid Flutter Row Overflow

‍

Proper Use of Constraints

Ensure the combined width of child widgets doesn't exceed the available space. Use constraints to control the width and prevent overflow.

‍

Responsive Design Considerations

Adapt the size and layout of child widgets to different screen widths. Use MediaQuery to adjust the layout according to screen size.

‍

Regular Debugging and Testing

Test your app on various screen sizes and orientations to identify and fix overflow issues early. Utilize Flutter's debugging and testing tools for efficient error detection and resolution.

‍

Overflow No More!

Handling Flutter row overflow is a common challenge in app development. However, with the right understanding of widgets like Flexible, Expanded, and Wrap, we can effectively manage and prevent overflow issues.

Proper use of constraints and responsive design considerations are crucial in avoiding these issues. Regular debugging and testing on different screen sizes and orientations can also help identify and resolve overflow problems early in the development process.

By mastering these concepts and practices, we can create Flutter apps that offer a smooth and visually appealing user experience, regardless of the amount of content or the screen size. The key is to ensure that your widgets adapt flexibly to the available space and respond appropriately to different screen conditions.
