Flutter Expandable Tab Essentials: From Basics to Advanced Techniques

Have you ever found yourself overwhelmed by an app's interface, cluttered with too much information all at once? Or perhaps you've needed just a bit more data from an interface that felt just too rigid? If so, expandable tabs in Flutter might just be the solution you've been searching for.

What if you could design a user interface that offers a peek into detailed content without leaving the main view? Imagine tabs that expand at a tap, revealing more information as needed, and contract just as easily. Wouldn't that make an app more interactive and user-friendly?

In this guide, we’ll dive deep into the world of Flutter expandable tabs. Whether you’re a seasoned Flutter developer or just starting out, you’ll discover how these flexible components can be customized to enhance your app's functionality and aesthetic. From the basics of setting up expandable tabs to implementing advanced features and best practices, we've got everything covered to help you create a smoother and more engaging user experience. Let’s get started and unfold the possibilities together!

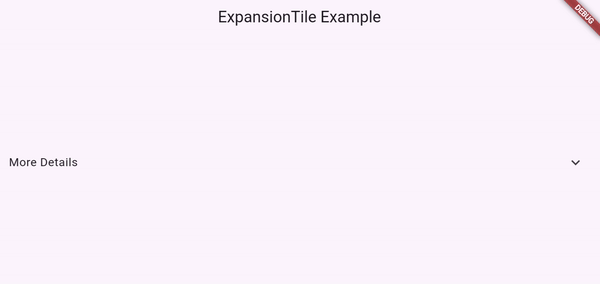

What is an Expandable Tab?

In Flutter, an expandable tab functions somewhat like a list tile but with the added ability to expand or collapse, revealing or hiding content as needed. This feature allows you, the user, to view more details without leaving the current screen. Employing expandable tabs is particularly beneficial when you need to present additional content but prefer not to overwhelm users with information right away. You can simply expand the tab to access more details whenever necessary.

Here's a simple example to illustrate how an expandable tab might be set up in a Flutter app:

Copy
1ExpansionTile(
2  title: Text('More Details'),
3  children: <Widget>[
4    ListTile(title: Text('Detail Info Here')),
5  ],
6),

This code snippet demonstrates the use of the ExpansionTile widget, a type of expandable tab in Flutter, which initially shows a single title and expands to reveal more content when tapped.

Creating an Expandable Tab

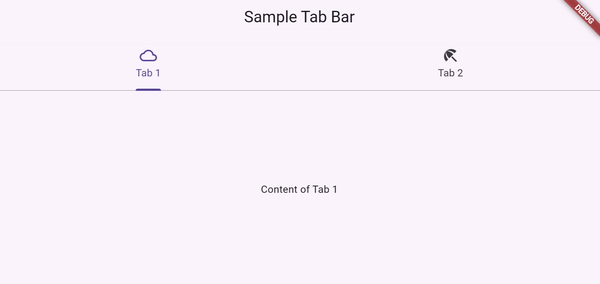

Designing a TabController with a Tab Bar

Creating a tab interface in your Flutter app is straightforward with the help of a TabController and a TabBar. This setup is pivotal for organizing multiple categories or sections of content within a single screen, enhancing both functionality and user experience.

Here's how you can construct a basic tab bar within a Flutter app:

Copy
1class TabBarDemo extends StatefulWidget {
2  @override
3  _TabBarDemoState createState() => _TabBarDemoState();
4}
5
6class _TabBarDemoState extends State<TabBarDemo> with SingleTickerProviderStateMixin {
7  TabController _tabController;
8
9  @override
10  void initState() {
11    super.initState();
12    _tabController = TabController(vsync: this, length: 2);
13  }
14
15  @override
16  Widget build(BuildContext context) {
17    return Scaffold(
18      appBar: AppBar(
19        title: Text('Sample Tab Bar'),
20        bottom: TabBar(
21          controller: _tabController,
22          tabs: [
23            Tab(icon: Icon(Icons.cloud_outlined), text: 'Tab 1'),
24            Tab(icon: Icon(Icons.beach_access_sharp), text: 'Tab 2'),
25          ],
26        ),
27      ),
28      body: TabBarView(
29        controller: _tabController,
30        children: [
31          Center(child: Text('Content of Tab 1')),
32          Center(child: Text('Content of Tab 2')),
33        ],
34      ),
35    );
36  }
37
38  @override
39  void dispose() {
40    _tabController.dispose();
41    super.dispose();
42  }
43}

In this example, the TabController is linked with a TabBar and a TabBarView, allowing users to switch between tabs and view different widgets on each tab. The SingleTickerProviderStateMixin is used for animation, and the TabController manages the state and coordination between the tab displays.

Implementing Expandable Tabs

Understanding ExpansionTile and ExpansionPanel

In Flutter, ExpansionTile and ExpansionPanel are two useful widgets that allow you to create expandable and collapsible sections within your app. Both widgets can help enhance the user interface by neatly organizing content and providing a better user experience, especially in content-heavy applications.

Parameters of ExpansionTile Widget

ExpansionTile is a versatile widget that provides a hassle-free way to implement expandable tabs. Here are some of its key parameters that allow for customization:

• onExpansionChanged: A callback that is called when the expansion state of the tile changes. It provides a boolean value indicating whether the tile is expanded.

• initiallyExpanded: If set to true, the tile is expanded by default when first built.

• maintainState: Determines whether the state of the children inside the tile is maintained when it collapses.

Flutter ExpansionPanel tutorial

To get started with ExpansionPanel, you would first create a new Flutter project and ensure that everything is set up correctly:

1. Create a new Flutter project in your preferred IDE or command line.

2. Implement the ExpansionPanel within a ExpansionPanelList widget.

3. Run the app using flutter run to see the expansion panels in action.

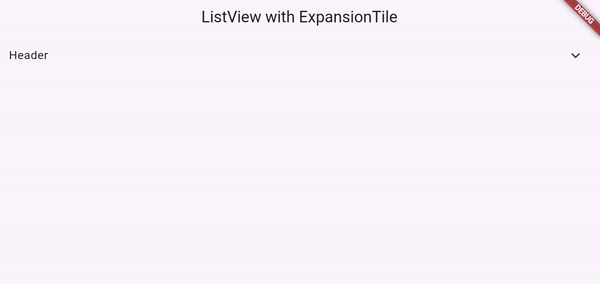

Adding ExpansionTile in a ListView

Integrating ExpansionTile into a ListView allows for each list item to be expandable. Here's how to replace a standard ListTile with an ExpansionTile:

Copy
1ListView(
2  children: <Widget>[
3    ExpansionTile(
4      title: Text('Header'),
5      children: <Widget>[
6        ListTile(title: Text('Expanded Item 1')),
7        ListTile(title: Text('Expanded Item 2')),
8      ],
9    ),
10  ],
11)

The ExpansionTile comes with a built-in expansion arrow icon at the end that indicates expandability and changes orientation upon interaction.

Customizing Expandable Tabs

Adjusting ExpansionPanel’s Animation and Touch Feedback

Flutter's flexibility extends to customizing the behavior and appearance of widgets, such as the ExpansionPanel. This includes modifying how the panels animate and respond to user interactions.

Modifying ExpansionPanel Animation Speed

To customize the animation speed of an ExpansionPanel, you can use the Duration property within your animation controller. Slowing down the animation can make transitions smoother and more noticeable, which can be beneficial in a user interface that prioritizes attention to detail.

Here’s how you can adjust the animation speed:

Copy
1AnimationController _animationController;
2
3@override
4void initState() {
5  super.initState();
6  _animationController = AnimationController(
7    duration: const Duration(milliseconds: 500), // Adjust this duration to slow down or speed up the animation
8    vsync: this,
9  );
10}
11
12@override
13void dispose() {
14  _animationController.dispose();
15  super.dispose();
16}

In this example, the Duration is set to 500 milliseconds, but you can increase or decrease this value based on how quick or slow you want the animation to be.

Fine-Tuning Touch Feedback

The ExpansionPanel by default reacts to touches on the entire panel, but sometimes, for better user experience, you might want the panel to only expand or collapse when the icon is tapped. This can be managed by adjusting where the touch listeners are active. Unfortunately, the default ExpansionPanel does not support this directly, but you can create a custom panel or use gestures to control the area of responsiveness.

Auto-Expanding ExpansionPanel Based on Widget State

Another customization option is to control the expansion of panels based on the state of the widget, which can be particularly useful in applications that need to show important information upfront.

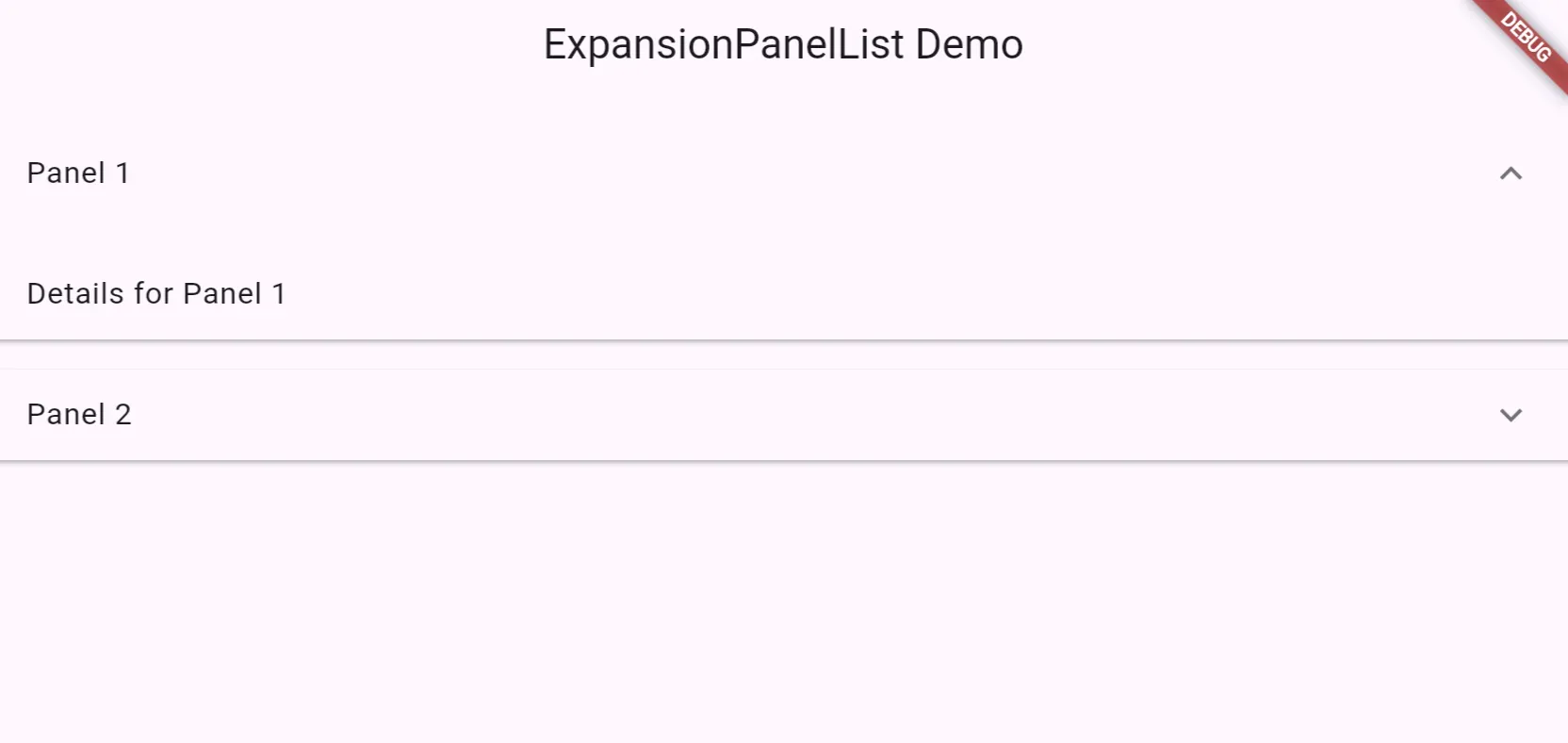

Setting Initial Expansion State

You can set an ExpansionPanel to be expanded by default by manipulating its isExpanded parameter. This is useful for drawing attention to a specific panel when the user first visits a page.

Here’s an example of how you might configure this:

Copy
1class Item {
2  Item({this.expandedValue, this.headerValue, this.isExpanded = false});
3
4  String expandedValue;
5  String headerValue;
6  bool isExpanded;
7}
8
9List<Item> _data = <Item>[
10  Item(headerValue: 'Panel 1', expandedValue: 'Details for Panel 1', isExpanded: true),
11  Item(headerValue: 'Panel 2', expandedValue: 'Details for Panel 2'),
12];
13
14@override
15Widget build(BuildContext context) {
16  return SingleChildScrollView(
17    child: ExpansionPanelList(
18      expansionCallback: (int index, bool isExpanded) {
19        setState(() {
20          _data[index].isExpanded = !isExpanded;
21        });
22      },
23      children: _data.map<ExpansionPanel>((Item item) {
24        return ExpansionPanel(
25          headerBuilder: (BuildContext context, bool isExpanded) {
26            return ListTile(title: Text(item.headerValue));
27          },
28          body: ListTile(title: Text(item.expandedValue)),
29          isExpanded: item.isExpanded,
30        );
31      }).toList(),
32    ),
33  );
34}

In this code, the first panel is set to be expanded by default (isExpanded: true). This behavior can be dynamically controlled based on application logic or user preferences, and could even be integrated with data fetched from a backend to reflect user-specific settings or requirements.

Advanced Expandable Tab Features

Expanding and Collapsing All Items at Once

For complex interfaces with multiple sections of expandable content, providing a control to expand or collapse all sections simultaneously can significantly enhance user convenience. Here’s how you can implement this functionality in your Flutter app.

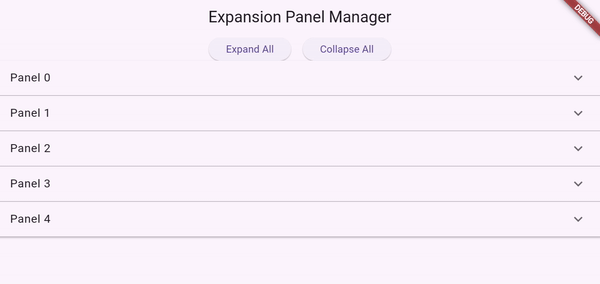

Implementing a Global Expansion/Collapse Control

To expand or collapse all panels at once in a Flutter app, you can manage the isExpanded state of each panel through a centralized state management approach. Here’s a practical way to implement this:

Copy
1import 'package:flutter/material.dart';
2
3void main() => runApp(MyApp());
4
5class MyApp extends StatelessWidget {
6  @override
7  Widget build(BuildContext context) {
8    return MaterialApp(
9      home: Scaffold(
10        appBar: AppBar(
11          title: Text('Expansion Panel Manager'),
12        ),
13        body: ExpansionPanelManager(),
14      ),
15    );
16  }
17}
18
19class ExpansionPanelManager extends StatefulWidget {
20  @override
21  _ExpansionPanelManagerState createState() => _ExpansionPanelManagerState();
22}
23
24class _ExpansionPanelManagerState extends State<ExpansionPanelManager> {
25  List<Item> _data = generateItems(5);
26
27  @override
28  Widget build(BuildContext context) {
29    return Column(
30      children: [
31        Row(
32          mainAxisAlignment: MainAxisAlignment.center,
33          children: [
34            ElevatedButton(
35              onPressed: () => setState(() {
36                for (var item in _data) {
37                  item.isExpanded = true;
38                }
39              }),
40              child: Text('Expand All'),
41            ),
42            SizedBox(width: 16.0), // Add space between the buttons
43            ElevatedButton(
44              onPressed: () => setState(() {
45                for (var item in _data) {
46                  item.isExpanded = false;
47                }
48              }),
49              child: Text('Collapse All'),
50            ),
51          ],
52        ),
53        Expanded(
54          child: SingleChildScrollView(
55            child: ExpansionPanelList(
56              expansionCallback: (int index, bool isExpanded) {
57                setState(() {
58                  _data[index].isExpanded = !isExpanded;
59                });
60              },
61              children: _data.map<ExpansionPanel>((Item item) {
62                return ExpansionPanel(
63                  headerBuilder: (BuildContext context, bool isExpanded) {
64                    return ListTile(title: Text(item.headerValue));
65                  },
66                  body: ListTile(title: Text(item.expandedValue)),
67                  isExpanded: item.isExpanded,
68                );
69              }).toList(),
70            ),
71          ),
72        ),
73      ],
74    );
75  }
76}
77
78class Item {
79  Item({
80    required this.expandedValue,
81    required this.headerValue,
82    this.isExpanded = false,
83  });
84
85  String expandedValue;
86  String headerValue;
87  bool isExpanded;
88}
89
90List<Item> generateItems(int numberOfItems) {
91  return List<Item>.generate(numberOfItems, (int index) {
92    return Item(
93      headerValue: 'Panel $index',
94      expandedValue: 'This is item number $index',
95    );
96  });
97}

In this example, two buttons control the expansion and collapse of all items. The setState method updates the isExpanded property for all items, triggering a UI update.

Creating Radio Expansion Panels with ExpansionPanelRadio

The ExpansionPanelRadio offers an exclusive selection model, where only one panel can be open at a time. This is useful in scenarios where you want to ensure only one content section is viewable at a time, reducing on-screen clutter.

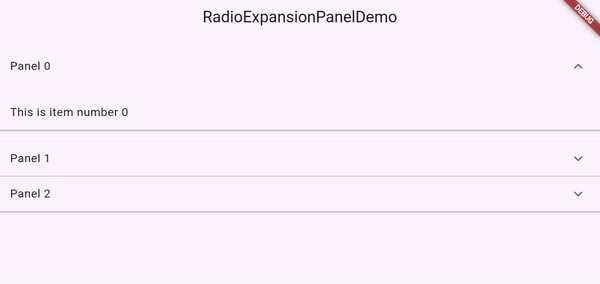

Using ExpansionPanelRadio

To use ExpansionPanelRadio, you must assign a unique value to each panel. Here’s how to set it up:

Copy
1import 'package:flutter/material.dart';
2
3void main() {
4  runApp(MaterialApp(
5    home: Scaffold(
6      appBar: AppBar(
7        title: Text('RadioExpansionPanelDemo'),
8      ),
9      body: RadioExpansionPanelDemo(),
10    ),
11  ));
12}
13
14// Item class to hold data for each panel
15class Item {
16  Item({required this.value, required this.expandedValue, required this.headerValue});
17
18  int value;
19  String expandedValue;
20  String headerValue;
21}
22
23// Function to generate a list of 'Item' objects
24List<Item> generateItems(int numberOfItems) {
25  return List<Item>.generate(numberOfItems, (int index) {
26    return Item(
27      value: index,
28      headerValue: 'Panel $index',
29      expandedValue: 'This is item number $index',
30    );
31  });
32}
33
34// Stateful widget that contains the ExpansionPanelList.radio
35class RadioExpansionPanelDemo extends StatefulWidget {
36  @override
37  _RadioExpansionPanelDemoState createState() => _RadioExpansionPanelDemoState();
38}
39
40class _RadioExpansionPanelDemoState extends State<RadioExpansionPanelDemo> {
41  List<Item> _data = generateItems(3);
42  int? _currentPanelValue;
43
44  @override
45  Widget build(BuildContext context) {
46    return SingleChildScrollView(
47      child: ExpansionPanelList.radio(
48        initialOpenPanelValue: _data[0].value,
49        children: _data.map<ExpansionPanelRadio>((Item item) {
50          return ExpansionPanelRadio(
51            value: item.value,
52            headerBuilder: (BuildContext context, bool isExpanded) {
53              return ListTile(title: Text(item.headerValue));
54            },
55            body: ListTile(title: Text(item.expandedValue))
56          );
57        }).toList(),
58      ),
59    );
60  }
61}

This implementation uses ExpansionPanelList.radio, where each panel is represented by an ExpansionPanelRadio and is associated with a unique value. This configuration allows only one panel to be open at a time, enhancing the neatness of the interface.

Best Practices for Flutter Apps

Holding the Tab Bar State while Navigating or Building

To ensure your Flutter app's tab bar maintains its state effectively during navigation and rebuilding, follow these best practices:

• Use a Custom TabController: Prefer a custom TabController over the DefaultTabController for enhanced control over the tab states, enabling better lifecycle management.

• Convert to a Stateful Widget: Make sure your widget is stateful to retain necessary state changes, such as the active tab, especially after user interactions.

• Implement SingleTickerProviderStateMixin: Add SingleTickerProviderStateMixin to your stateful widget to provide a necessary ticker for the animation controller, which supports smooth animations in tab transitions.

• Initialize TabController in initState: Initialize your TabController in the initState method to prevent unnecessary reinitializations and optimize performance.

• Connect TabController with TabBar Widgets: Ensure the TabController is connected to your TabBar widget to synchronize state changes and update the UI accurately.

Conclusion

Mastering the use of expandable tabs in Flutter can significantly enhance the user experience by organizing content in a clean and interactive manner. From creating basic ExpansionTile and ExpansionPanel widgets to implementing advanced features like auto-expanding panels and managing tab states efficiently, this guide has equipped you with the knowledge to implement these elements in your own Flutter apps.

By adhering to best practices and utilizing Flutter's flexible widget system, you can create apps that are not only functional but also intuitive and pleasing to navigate. Embrace these techniques to elevate your app's design and functionality, making it a joy to use and explore.
