Designing with GridTile: Flutter Layouts Made Simple

Flutter's versatile UI toolkit offers a variety of widgets to create visually appealing and functional applications. Among these widgets, GridTile stands out as a fundamental building block for grid layouts, which are a common design pattern in mobile app development.

Understanding the GridTile Widget

GridTile is a class that represents a single tile within a grid layout. It is designed to hold content, such as an image or text, and can be customized with a header or footer. When you're working with a grid in Flutter, GridTile is the widget you'll use to populate each cell with content. The GridTile widget is particularly useful when you want to display items in a clean, organized manner on your page.

For example, if you're creating a photo gallery app, you might use GridTile to display each image. In this case, the child property of the GridTile would typically contain an Image widget. The GridTile can also be styled with padding, margin, and decoration to fit the desired look and feel of your page.

The Role of GridTile in Grid Layouts

Grid layouts are a powerful way to organize content on a page. They provide a structured form, allowing you to display a collection of items in rows and columns. In Flutter, the GridView widget is used to create a grid layout, and it works hand-in-hand with GridTile to form the visual structure of the grid.

Each GridTile can be thought of as a container for your content within the grid. The GridView manages the overall grid structure, determining the count of tiles in each row or column, and handling the scrolling behavior. It requires a buildcontext context and an int index to determine what content to display in each tile.

The buildcontext context is a handle to the location of a widget in the widget tree, and it is used in many functions to interact with the framework. The int index is used to index into the list of items you want to display in your grid.

Here's a simple example of how GridTile might be used within a GridView to create a grid of images:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
GridView.builder(
  itemCount: 20, // The count of items in the grid
  gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(
    crossAxisCount: 3, // The number of columns in the grid
  ),
  itemBuilder: (BuildContext context, int index) {
    // Create a GridTile for each item at the given index
    return GridTile(
      child: Image.network('https://example.com/image_$index.png'),
    );
  },
)

In the above code snippet, GridView.builder is used to create a grid with a fixed number of columns, specified by crossAxisCount. The itemBuilder function takes buildcontext context and int index and returns a GridTile containing an image for each index. This pattern is repeated for each item in the grid, allowing for the display of an arbitrary number of images.

When designing your grid, you may encounter situations where you need to display an arbitrary value or content that doesn't fit the default styling or layout. In such cases, you can customize each GridTile to suit your needs. Whether it's adjusting the width, adding padding, or changing the decoration, GridTile gives you the flexibility to create a grid that matches your unique style and performance requirements.

Implementing GridTile in a Flutter Application

When you begin to develop a Flutter application that requires a grid layout, GridTile is an essential widget to understand and implement. It serves as the cornerstone for creating grids that are not only functional but also visually appealing.

Setting Up a Basic Grid Layout

To start with a basic grid layout on your page, you'll need to use the GridView widget, which acts as a framework for the GridTile widgets. The GridView can be set up to automatically generate tiles based on the data you provide. Here's a simple example of how to create a grid layout with GridTile:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
import 'package:flutter/material.dart';

void main() {
  runApp(MyGridViewApp());
}

class MyGridViewApp extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'GridView Example',
      home: Scaffold(
        appBar: AppBar(
          title: Text('GridView Example'),
        ),
        body: GridView.count(
          crossAxisCount: 3, // Determines the number of columns
          children: List.generate(9, (index) {
            return GridTile(
              child: Center(
                child: Text('Tile $index'),
              ),
            );
          }),
        ),
      ),
    );
  }
}

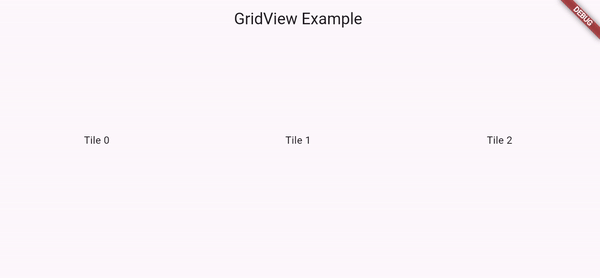

In this code snippet, GridView.count is used to establish a grid with three columns. The children property is populated with a list of GridTiles, each containing a centered text widget displaying the tile's index. This is a straightforward way to create a grid layout on your page.

Customizing GridTile with Headers and Footers

To enhance the functionality and style of your grid tiles, you can add headers and footers. These are typically used to display additional information, such as titles or actions associated with the tile's content. For instance, you might want to add a label over an image or place a favorite button at the bottom of a tile. Here's how you could customize a GridTile with a footer:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
import 'package:flutter/material.dart';

void main() {
  runApp(MyGridTileApp());
}

class MyGridTileApp extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'GridTile Example',
      home: Scaffold(
        appBar: AppBar(
          title: Text('GridTile Example'),
        ),
        body: GridView.builder(
          itemCount: 1, // We only have one GridTile for demonstration
          gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(
            crossAxisCount: 1, // Single column
          ),
          itemBuilder: (BuildContext context, int index) {
            return GridTile(
              footer: GridTileBar(
                backgroundColor: Colors.black45,
                title: Text('Tile Title'),
                trailing: Icon(Icons.star),
              ),
              child: Image.network('https://imgs.search.brave.com/Qr-g7gO8Xq3eaPEDrfdKqBSBPaB3xBoukXIRNmJIo9E/rs:fit:500:0:0/g:ce/aHR0cHM6Ly9jZG4u/cGl4YWJheS5jb20v/cGhvdG8vMjAxOC8w/OC8yMS8yMy8yOS9m/b3Jlc3QtMzYyMjUx/OV82NDAuanBn'),
            );
          },
        ),
      ),
    );
  }
}

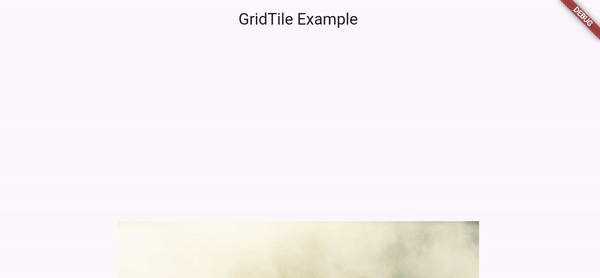

In this example, the footer property of the GridTile is given a GridTileBar widget, which contains a title and a trailing icon. The child property holds an image fetched from the network. This customization allows you to add a layer of information and interaction to each tile in your grid.

Handling Arbitrary Values in GridTile

Sometimes, the content you need to display within a GridTile may not have a uniform size or may need to adapt to different screen sizes or orientations. To handle such arbitrary values, you can use various layout widgets and properties to ensure your grid remains responsive and visually coherent.

For instance, if you have a collection of images with varying dimensions that you want to display in a grid, you might need to adjust the aspect ratio for each tile to maintain a consistent look:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
import 'package:flutter/material.dart';

void main() {
  runApp(MyGridViewApp());
}

class MyGridViewApp extends StatelessWidget {
  // Define the images list with some example image URLs.
  final List<String> images = [
		 // Replace URLs with the image URL you want to display
    'https://via.placeholder.com/150',
    'https://via.placeholder.com/150',
    'https://via.placeholder.com/150',

    // Add more image URLs here...
  ];

  // Define the item width and height.
  // These are arbitrary values for the purpose of this example.
  final double itemWidth = 100.0;
  final double itemHeight = 100.0;

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'GridView Example',
      home: Scaffold(
        appBar: AppBar(
          title: Text('GridView Example'),
        ),
        body: GridView.builder(
          itemCount: images.length,
          gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(
            crossAxisCount: 3,
            childAspectRatio: (itemWidth / itemHeight),
          ),
          itemBuilder: (BuildContext context, int index) {
            return GridTile(
              child: Image.network(images[index]),
            );
          },
        ),
      ),
    );
  }
}

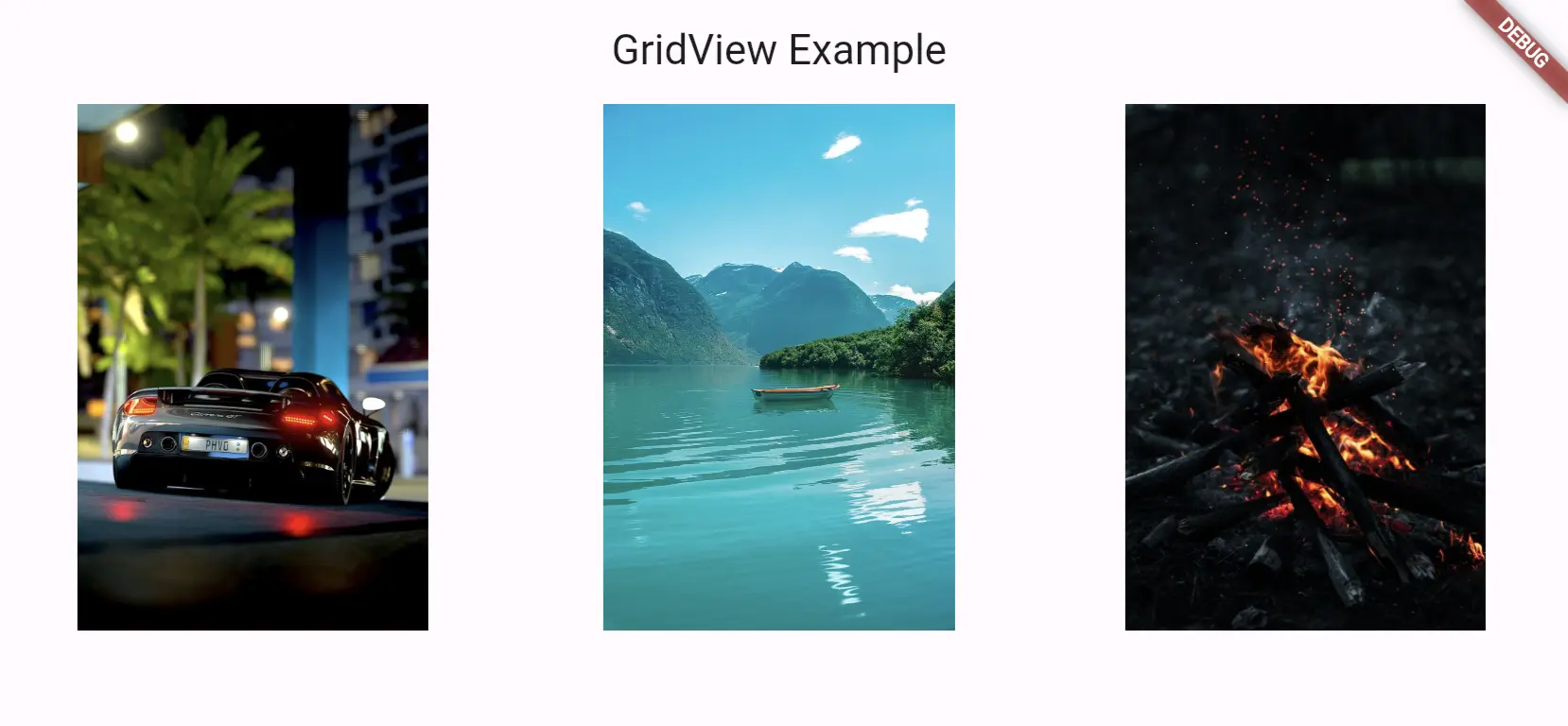

In this code snippet, the childAspectRatio property is used to determine the aspect ratio for each tile, which is calculated based on the arbitrary width (itemWidth) and height (itemHeight) of the content. This ensures that each tile is sized appropriately, regardless of the content's original dimensions.

Advanced GridTile Customizations

As you become more comfortable with GridTile and its role within grid layouts, you can explore advanced customization options to further enhance the user experience. These customizations can include adding rich content and ensuring your grid adapts to various screen sizes and orientations.

Enhancing Visual Appeal with Rich Content

A grid that simply displays text or basic images may not captivate your users. To create a more engaging interface, consider incorporating rich content into your GridTiles. This could involve adding interactive elements, animations, or layered widgets that respond to user input.

For example, you might want to include a carousel of images within a GridTile, allowing users to swipe through multiple images without leaving the grid layout. Or, you could overlay gradient decorations on images to create a sleek, modern look. Here's how you might add a gradient overlay to an image within a GridTile:

Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
GridTile(
  child: Stack(
    fit: StackFit.expand,
    children: [
      Image.network('https://example.com/image.jpg', fit: BoxFit.cover),
      Container(
        decoration: BoxDecoration(
          gradient: LinearGradient(
            begin: Alignment.topCenter,
            end: Alignment.bottomCenter,
            colors: [Colors.transparent, Colors.black54],
          ),
        ),
      ),
      Center(child: Text('Title', style: TextStyle(color: Colors.white))),
    ],
  ),
)

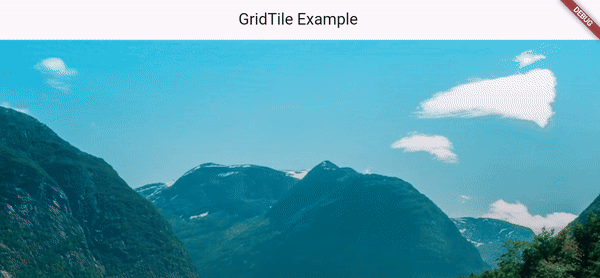

In this code snippet, a Stack widget is used to layer multiple widgets on top of each other within the GridTile. The Image.network widget provides the visual content, while a Container with a BoxDecoration applies a gradient overlay. A Text widget is then centered on top, providing a title with a contrasting color for readability.

Responsive GridTile Design for Dynamic Layouts

A responsive grid is crucial for providing a consistent user experience across a wide range of devices. To achieve this, your GridTiles should be able to adjust their size, layout, and content based on the available space.

One approach is to use media queries to determine the screen size and orientation, and then adjust the number of columns in your GridView accordingly. This ensures that your GridTiles remain a usable size and that the grid doesn't become too crowded or sparse on different devices. Here's an example of how you might implement a responsive GridView:

Copy
1
2
3
4
5
6
7
8
GridView.count(
  crossAxisCount: MediaQuery.of(context).size.width > 600 ? 4 : 2,
  children: List.generate(20, (index) {
    return GridTile(
      child: Image.network('https://example.com/image_$index.jpg'),
    );
  }),
)

In this example, the crossAxisCount is determined by the width of the device. If the width is greater than 600 logical pixels, the grid will display four columns; otherwise, it will display two columns. This simple check allows the grid to adapt to different screen sizes, ensuring that the GridTiles always display in an optimal layout.

Conclusion

The GridTile widget in Flutter is a versatile tool that can elevate the design and functionality of grid layouts in your applications. From setting up basic grids to implementing advanced customizations with rich content and responsive designs, GridTile offers the flexibility to create compelling and user-friendly interfaces.

By harnessing the power of GridTile and its ability to handle arbitrary values and dynamic content, you can ensure that your app looks great on any device and engages users with its visual appeal and performance.
